NSN 5340-00-160-7531
Part Details | ACCESS COVER
5340-00-160-7531 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 12106212, 1210621-2, 12106212, 1210621-2, 5340-00-160-7531, 00-160-7531, 5340001607531, 001607531
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 29, 1971 | 00-160-7531 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS

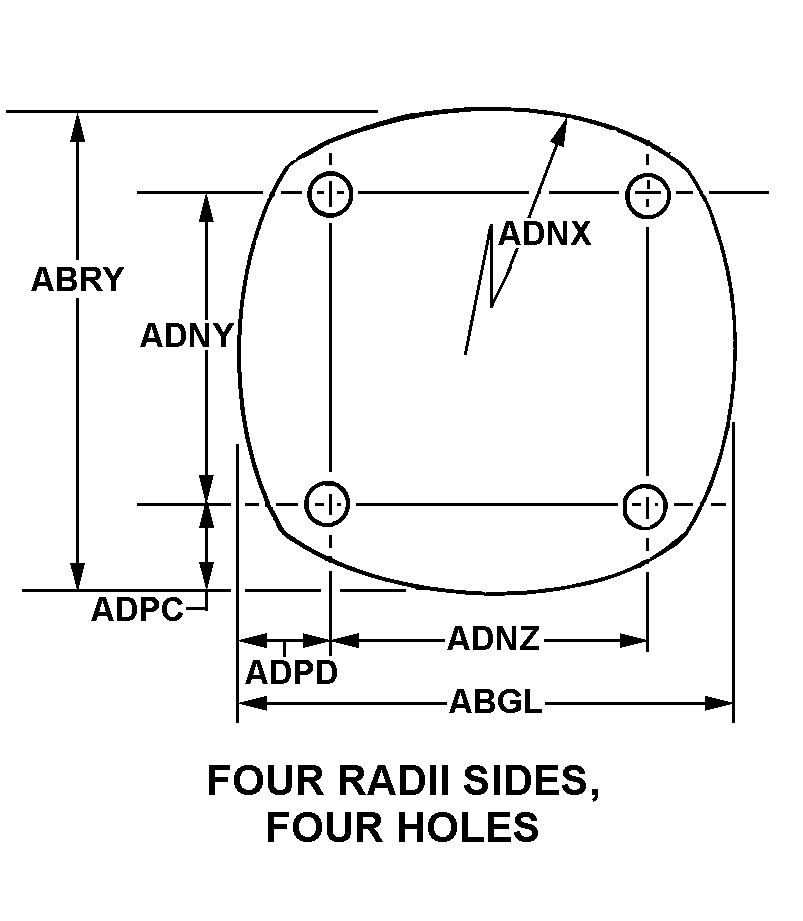

FOUR RADII SIDES, FOUR HOLES
UNTHREADED HOLE
Cross Reference | NSN 5340-00-160-7531
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1210621-2 | 96774 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 1210621-2 | 55972 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
Technical Data | NSN 5340-00-160-7531
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | THREADED FASTENER |
| PERIPHERAL SHAPE STYLE | FOUR RADII SIDES, FOUR HOLES |
| CROSS-SECTIONAL SHAPE STYLE | 1 CIRCULAR RECESS |
| MOUNTING OPENING SHAPE STYLE | UNTHREADED HOLE |
| FEATURES PROVIDED | SEALING CAPABILITY |
| FSC APPLICATION DATA | PRESSURE CONTROL SYSTEM |
