NSN 5340-00-159-8993
Part Details | ACCESS COVER
5340-00-159-8993 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 10955512, 5340-00-159-8993, 00-159-8993, 5340001598993, 001598993
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 17, 1971 | 00-159-8993 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS

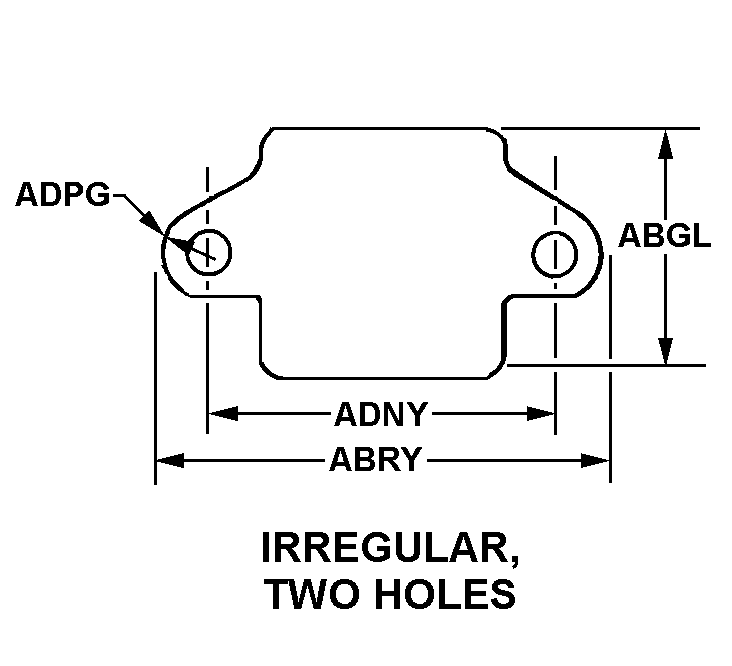

IRREGULAR, TWO HOLES
Cross Reference | NSN 5340-00-159-8993
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10955512 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-159-8993
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | THREADED FASTENER |
| MATERIAL | STEEL |
| PERIPHERAL SHAPE STYLE | IRREGULAR, TWO HOLES |
| WIDTH | 2.500 INCHES NOMINAL |
| LENGTH | 5.249 INCHES NOMINAL |
| EAR RADIUS | 0.437 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 4.375 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | CIRCULAR RECESS |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.625 INCHES NOMINAL |
| BODY THICKNESS | 0.250 INCHES NOMINAL |
