NSN 5340-00-159-8753

Part Details | ACCESS COVER

5340-00-159-8753 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.

Alternate Parts: 5132458, 1DD260, 1DD260, PC5132458, 5340-00-159-8753, 00-159-8753, 5340001598753, 001598753

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53APR 21, 197100-159-875329785 ( COVER, ACCESS )
REFERENCE DRAWINGS & PICTURES

CIRCULAR RECESS

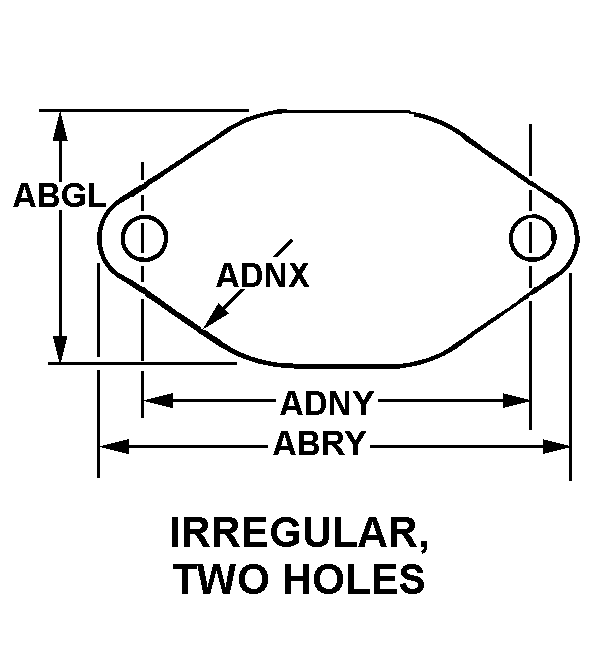

IRREGULAR, TWO HOLES

UNTHREADED HOLE

Cross Reference | NSN 5340-00-159-8753
Part Number Cage Code Manufacturer
513245872582MTU AMERICA INC.
1DD26045152OSHKOSH CORPORATION
1DD26075Q65OSHKOSH DEFENSE, LLC
PC5132458C7432POWER COMPONENTS (DEUTSCHLAND) GMBH
Technical Data | NSN 5340-00-159-8753
Characteristic Specifications
SECURING DEVICE TYPE THREADED FASTENER
MATERIAL STEEL COMP 1010
PERIPHERAL SHAPE STYLE IRREGULAR, TWO HOLES
WIDTH2.719 INCHES MINIMUM AND 2.721 INCHES MAXIMUM
LENGTH5.219 INCHES MINIMUM AND 5.221 INCHES MAXIMUM
BODY RADIUS0.739 INCHES MINIMUM AND 0.741 INCHES MAXIMUM
DISTANCE BETWEEN HOLES ALONG LENGTH4.379 INCHES MINIMUM AND 0.381 INCHES MAXIMUM
CORNER RADIUS0.419 INCHES MINIMUM AND 0.421 INCHES MAXIMUM
CROSS-SECTIONAL SHAPE STYLE6 CIRCULAR RECESS
BODY THICKNESS0.374 INCHES MINIMUM AND 0.376 INCHES MAXIMUM
MOUNTING OPENING SHAPE STYLE UNTHREADED HOLE
HOLE DIAMETER0.343 INCHES MINIMUM AND 0.345 INCHES MAXIMUM
