NSN 5340-00-157-7621
Part Details | ANGLE BRACKET
5340-00-157-7621 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.
Alternate Parts: 948786, 5340001577621, 5340001577621, 11657136, 5340-00-157-7621, 00-157-7621, 5340001577621, 001577621
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 05, 1971 | 00-157-7621 | 16900 ( BRACKET, ANGLE ) |
REFERENCE DRAWINGS & PICTURES
SQUARE

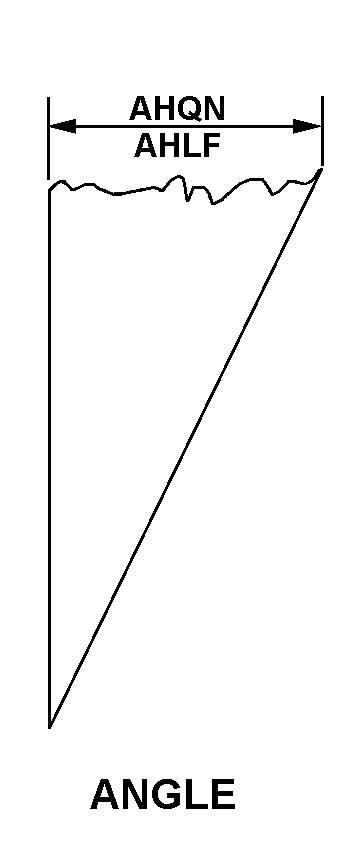

ANGLE
ONE HOLE
TWO HOLES
SQUARE
ANGLE
ONE HOLE
TWO HOLES
ANGLE
Cross Reference | NSN 5340-00-157-7621
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 948786 | 34623 | AM GENERAL LLC |
| 5340001577621 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 5340001577621 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 11657136 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-157-7621
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ENAMEL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ATT-E-529$ATT-E-485 1ST TREATMENT RESPONSE |
| STYLE DESIGNATOR | ANGLE |
| FIRST LEG LENGTH | 1.950 INCHES NOMINAL |
| SECOND LEG LENGTH | 3.240 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.090 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.090 INCHES NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | SQUARE |
| FIRST LEG WIDTH | 2.560 INCHES NOMINAL |
| SECOND LEG WIDTH | 1.000 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | TWO HOLES |
| FIRST LEG HOLE DIAMETER | 0.281 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 0.750 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.500 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.420 INCHES NOMINAL |
| SECOND LEG HOLE DIAMETER | 0.421 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.500 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.590 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | ANGLE |
| SECOND LEG HOLE ARRANGEMENT STYLE | ONE HOLE |
