NSN 5340-00-157-1415
Part Details | HAND CRANK
5340-00-157-1415 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.
Alternate Parts: 417181PC1, 417181PC1, 5340-00-157-1415, 00-157-1415, 5340001571415, 001571415
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-157-1415 | 17533 ( CRANK, HAND ) |
REFERENCE DRAWINGS & PICTURES

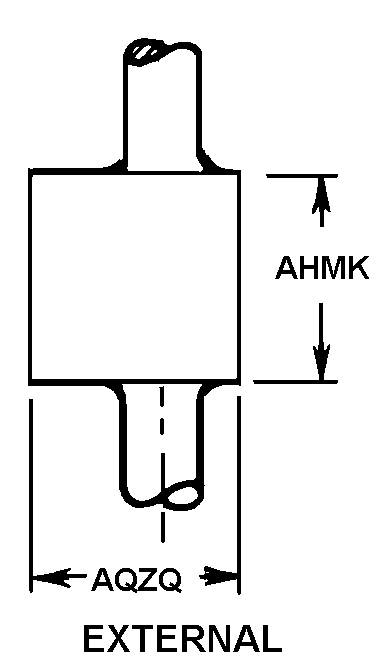

EXTERNAL
FLATTED, TWO SIDES PARALLEL
Cross Reference | NSN 5340-00-157-1415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 417181PC1 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 417181PC1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5340-00-157-1415
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| DRIVE END STYLE | EXTERNAL |
| SHANK HEIGHT | 0.188 INCHES NOMINAL |
| DRIVE FACILITY STYLE | FLATTED, TWO SIDES PARALLEL |
| DRIVE WIDTH | 0.062 INCHES NOMINAL |
| DRIVE FACILITY THREAD SERIES DESIGNATOR | UNC |
| THREAD DIAMETER | 0.099 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 48 |
| THREAD LOCATION | EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
