NSN 5340-00-155-6895
Part Details | TURNBUCKLE
5340-00-155-6895 A metal loop, sleeve, or solid body with end pulls, having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one end and left hand screw threads on the other. It may include lock nuts, check nuts, jam nuts, and/or terminal attachment(s) such as hooks, rings, and the like. It is designed to regulate the distance (take-up) between two points by turning. See also PELICAN HOOK AND TURNBUCKLE ASSEMBLY; and TIE ROD, TENSIONING, THREADED END.
Alternate Parts: S25112X9SIZE, S251-1-2X9SIZE, FFT791, FF-T-791, 5340-00-155-6895, 00-155-6895, 5340001556895, 001556895
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 21, 1973 | 00-155-6895 | 00502 ( TURNBUCKLE ) |
REFERENCE DRAWINGS & PICTURES
HEX OPEN BODY

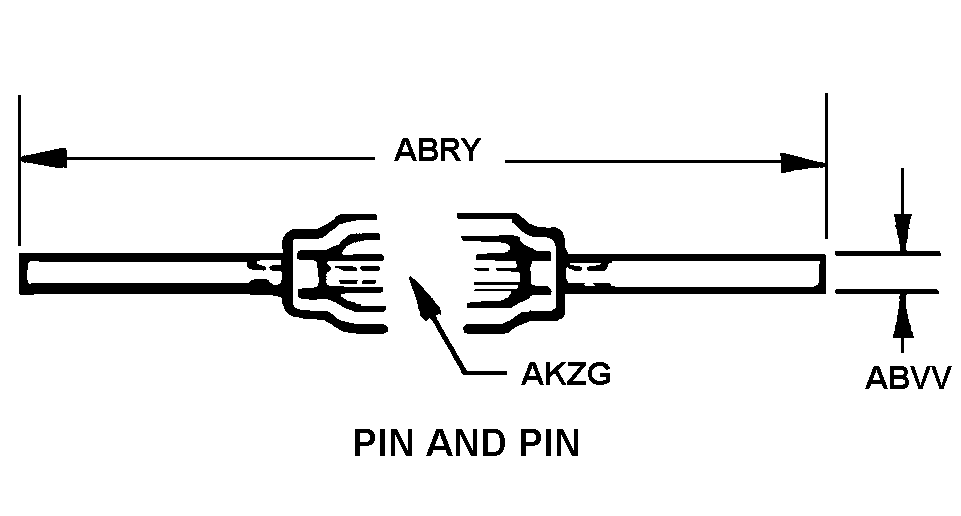

PIN AND PIN
Cross Reference | NSN 5340-00-155-6895
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S251-1-2X9SIZE | 75535 | CROSBY GROUP INCDBA NATIONAL SWAGE |
| FF-T-791 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5340-00-155-6895
| Characteristic | Specifications |
|---|---|
| END STYLE | PIN AND PIN |
| LENGTH | 16.000 INCHES NOMINAL |
| PIN DIAMETER | 0.500 INCHES NOMINAL |
| TAKE-UP DISTANCE | 9.000 INCHES NOMINAL |
| BODY STYLE | HEX OPEN BODY |
| BODY LENGTH | 7.500 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81348-FFT791 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1 FORM AND 3 CLASS |
