NSN 5340-00-155-4798
Part Details | RETAINING BAND
5340-00-155-4798 A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING.
Alternate Parts: 233663560SH, 2336-63-560SH, 5340-00-155-4798, 00-155-4798, 5340001554798, 001554798
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 24, 1971 | 00-155-4798 | 20318 ( BAND, RETAINING ) |
REFERENCE DRAWINGS & PICTURES

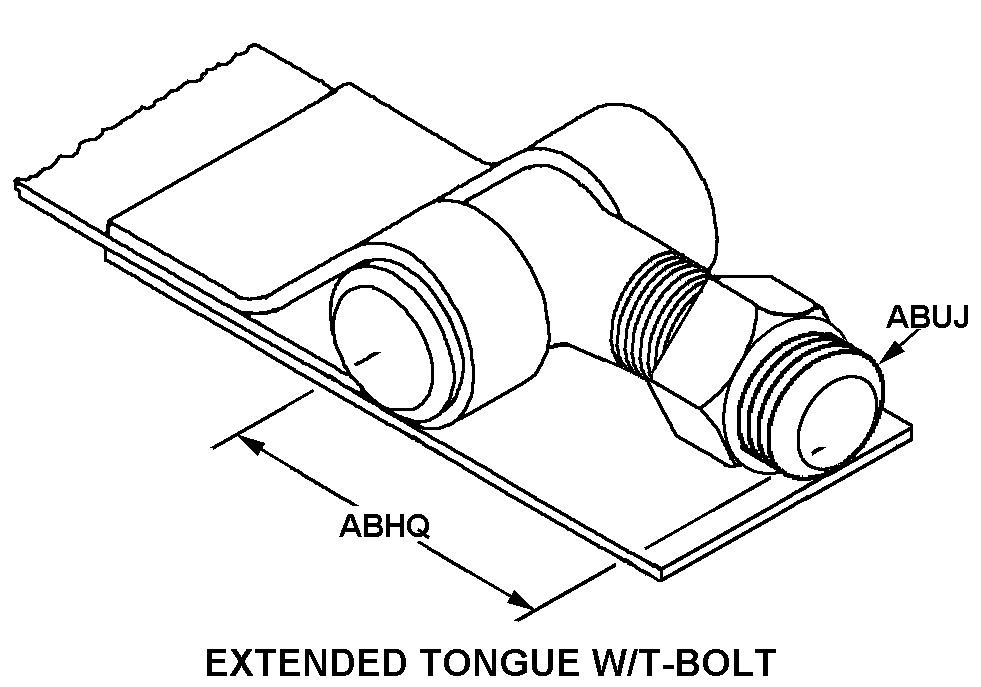

EXTENDED TONGUE W/T-BOLT
FLAT
Cross Reference | NSN 5340-00-155-4798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2336-63-560SH | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
Technical Data | NSN 5340-00-155-4798
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | FLAT |
| MATERIAL | 1$2$4 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059, COMP 301 MIL SPEC 1ST MATERIAL RESPONSE AND MIL-S-5059, COMP 302 MIL SPEC 2ND MATERIAL RESPONSE AND MIL-S-5059, COMP 304 MIL SPEC 3RD MATERIAL RESPONSE |
| WIDTH | 0.630 INCHES NOMINAL |
| THICKNESS | 0.020 INCHES NOMINAL |
| LENGTH | 5.6000 INCHES NOMINAL |
| END STYLE | EXTENDED TONGUE W/T-BOLT |
