NSN 5340-00-155-2713
Part Details | BRIDGE CLAMP
5340-00-155-2713 A clamp designed to straddle a cover, door or like item, and used to secure such cover, door or like item to effect a tight joint or seal.
Alternate Parts: 325213PC8, 325213PC8, 5340-00-155-2713, 00-155-2713, 5340001552713, 001552713
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-155-2713 | 11206 ( CLAMP, BRIDGE ) |

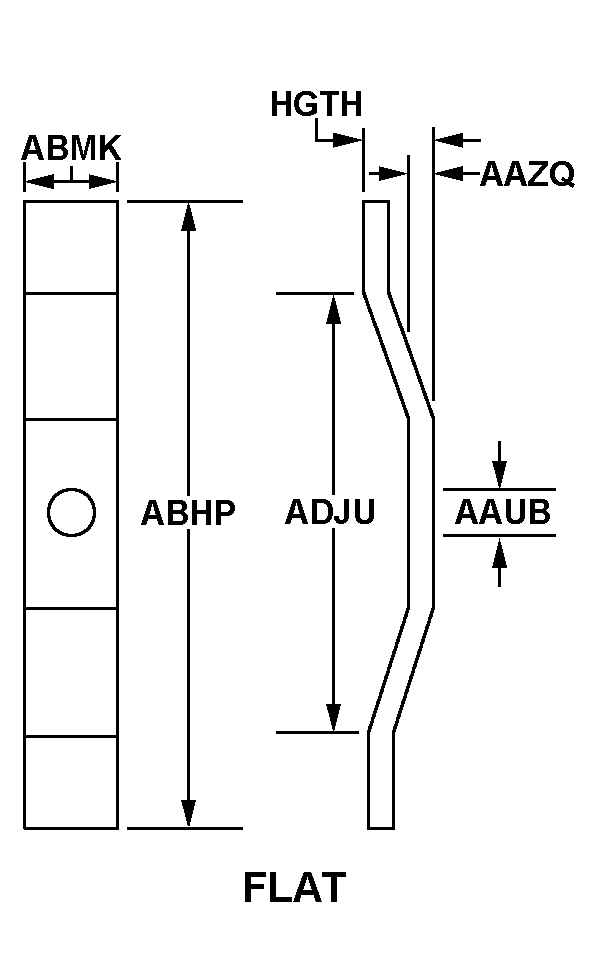

REFERENCE DRAWINGS & PICTURES
FLAT
Cross Reference | NSN 5340-00-155-2713
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 325213PC8 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 325213PC8 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5340-00-155-2713
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLAT |
| HOLE DIAMETER | 0.093 INCHES NOMINAL |
| HOLE DEPTH | 0.090 INCHES NOMINAL |
| OVERALL LENGTH | 0.312 INCHES NOMINAL |
| OVERALL WIDTH | 0.188 INCHES NOMINAL |
| INSIDE LENGTH | 0.312 INCHES NOMINAL |
| HEIGHT | 0.090 INCHES NOMINAL |
