NSN 5340-00-152-5879
Part Details | PLUG BUTTON
5340-00-152-5879 An item, usually made of metal, having a finished cap with spring tension prongs on the underside, or spring wire fitted into the sides of the walls. When inserted in punched or drilled holes in metal sheets or tubes, the expanding action of the prongs or spring wire holds the item securely in place. It is specifically designed to close a hole; to cover a hole through which passes a shaft, cable, or the like; or to provide a perforated cover for a vent or breather hole. Excludes FASTENER, SPRING TENSION, TRIM.
Alternate Parts: 3856091, 385609-1, 3856091, 385609-1, 5340-00-152-5879, 00-152-5879, 5340001525879, 001525879
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 06, 1971 | 00-152-5879 | 11251 ( BUTTON, PLUG ) |
REFERENCE DRAWINGS & PICTURES

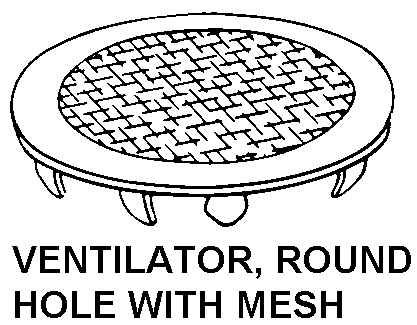

VENTILATOR, ROUND HOLE WITH MESH
Cross Reference | NSN 5340-00-152-5879
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 385609-1 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
| 385609-1 | 64694 | TELEPHONICS CORPORATIONDBA COMMAND SYSTEMS DIVISION |
Technical Data | NSN 5340-00-152-5879
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 3003 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ALLOY 3003, H12 NATIONAL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | VENTILATOR, ROUND HOLE WITH MESH |
| HEAD OUTSIDE DIAMETER | 1.188 INCHES NOMINAL |
| HEAD OPENING INSIDE DIAMETER | 0.906 INCHES NOMINAL |
| PRONG QUANTITY | 8 |
