NSN 5340-00-152-1712
Part Details | WEBBING STRAP
5340-00-152-1712 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: LS5911ABH10G, SA3138LG1, SA-3138LG-1, SA3138LG1, SA-3138LG-1, 5340-00-152-1712, 00-152-1712, 5340001521712, 001521712
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 21, 1973 | 00-152-1712 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES
END BAR WITH TONGUE

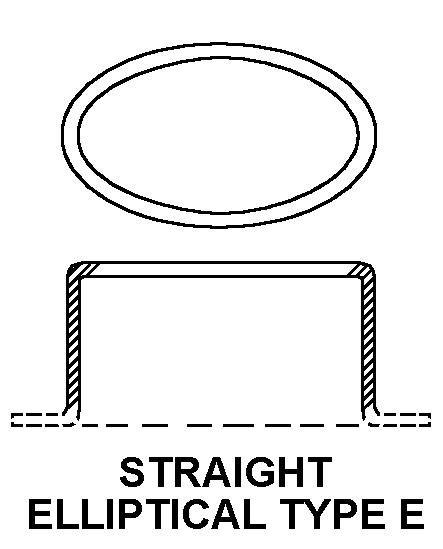

STRAIGHT ELLIPTICAL TYPE
FLANGE

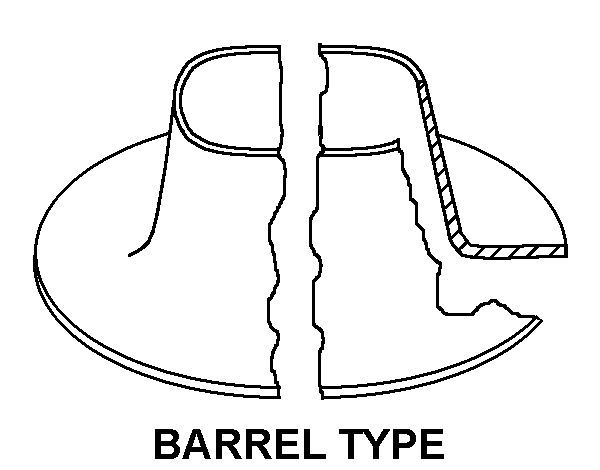

BARREL TYPE
Cross Reference | NSN 5340-00-152-1712
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS5911ABH10G | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| SA-3138LG-1 | 1KNH1 | M.M. REIF LTD. |
| SA-3138LG-1 | 82820 | REIF M M & CO INC |
Technical Data | NSN 5340-00-152-1712
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON |
| WIDTH | 0.750 INCHES NOMINAL |
| LENGTH | 10.000 INCHES NOMINAL |
| END TYPE | BOTH W/ATTACHMENTS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-530, TYPE 2A, CLASS 3 MIL SPEC SINGLE MATERIAL RESPONSE |
| COLOR | GREEN |
| END ATTACHMENT/FASTENING FACILITY | BUCKLE AND METALLIC GROMMET |
| BUCKLE STYLE DESIGNATOR | 0 END BAR WITH TONGUE |
| BUCKLE MATERIAL | STEEL |
| BUCKLE SURFACE TREATMENT | 5$DNF0000 |
| BUCKLE LOCATION | ON END |
| FASTENED BUCKLE FEATURE | INCLUDED |
| BUCKLE FASTENING METHOD | SEWED |
| GROMMET QUANTITY | 1 |
| GROMMET BARREL STYLE DESIGNATOR | STRAIGHT ELLIPTICAL TYPE |
| GROMMET FLANGE STYLE DESIGNATOR | FLANGE |
| GROMMET WASHER STYLE DESIGNATOR | BARREL TYPE |
| DISTANCE FROM STRAP END TO FIRST GROMMET HOLE CENTER | 0.310 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| SPECIAL FEATURES | COLOR NO. 34424,FED-STD-595 |
| SPECIFICATION/STANDARD DATA | 98897-GLS5911 MANUFACTURERS STANDARD |
