NSN 5340-00-151-9857
Part Details | CLAMP BOLT ASSEMBLY
5340-00-151-9857 A threaded item having an eye on one end designed to accommodate a hinge pin, or a pin inserted at right angles to the shank. It must have an adjusting nut assembled on the threads. The end of the threads may be headed, or a cap nut or similar device attached to prevent disassembly of the adjusting nut. It may also have a washer, collar or retainer assembled between the nut and hinge mounted end. Includes items having a bracket or lug mounting. It is used to rigidly clamp items to a structure, instrument, or the like.
Alternate Parts: PLSR1AA, GC500BG2, 5340-00-151-9857, 00-151-9857, 5340001519857, 001519857
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 21, 1973 | 00-151-9857 | 20271 ( BOLT ASSEMBLY, CLAMP ) |
REFERENCE DRAWINGS & PICTURES

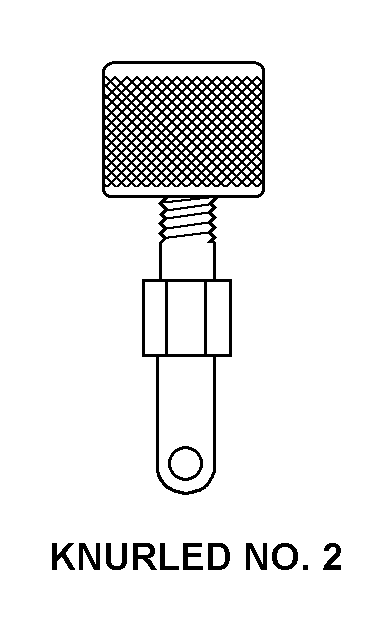

KNURLED NO. 2
Cross Reference | NSN 5340-00-151-9857
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PLSR1AA | 81860 | HUTCHINSON AEROSPACE & INDUSTRY,INC. |
| GC500BG2 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 5340-00-151-9857
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KNURLED NO. 2 |
| MOUNTING METHOD | PLATE |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2A |
| SPECIFICATION/STANDARD DATA | 26512-GC500B MANUFACTURERS SPECIFICATION |
