NSN 5340-00-151-7123
Part Details | ROD END CLEVIS
5340-00-151-7123 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.
Alternate Parts: 215706841, 215-70684-1, 5340-00-151-7123, 00-151-7123, 5340001517123, 001517123
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 13, 1970 | 00-151-7123 | 03796 ( CLEVIS, ROD END ) |
REFERENCE DRAWINGS & PICTURES

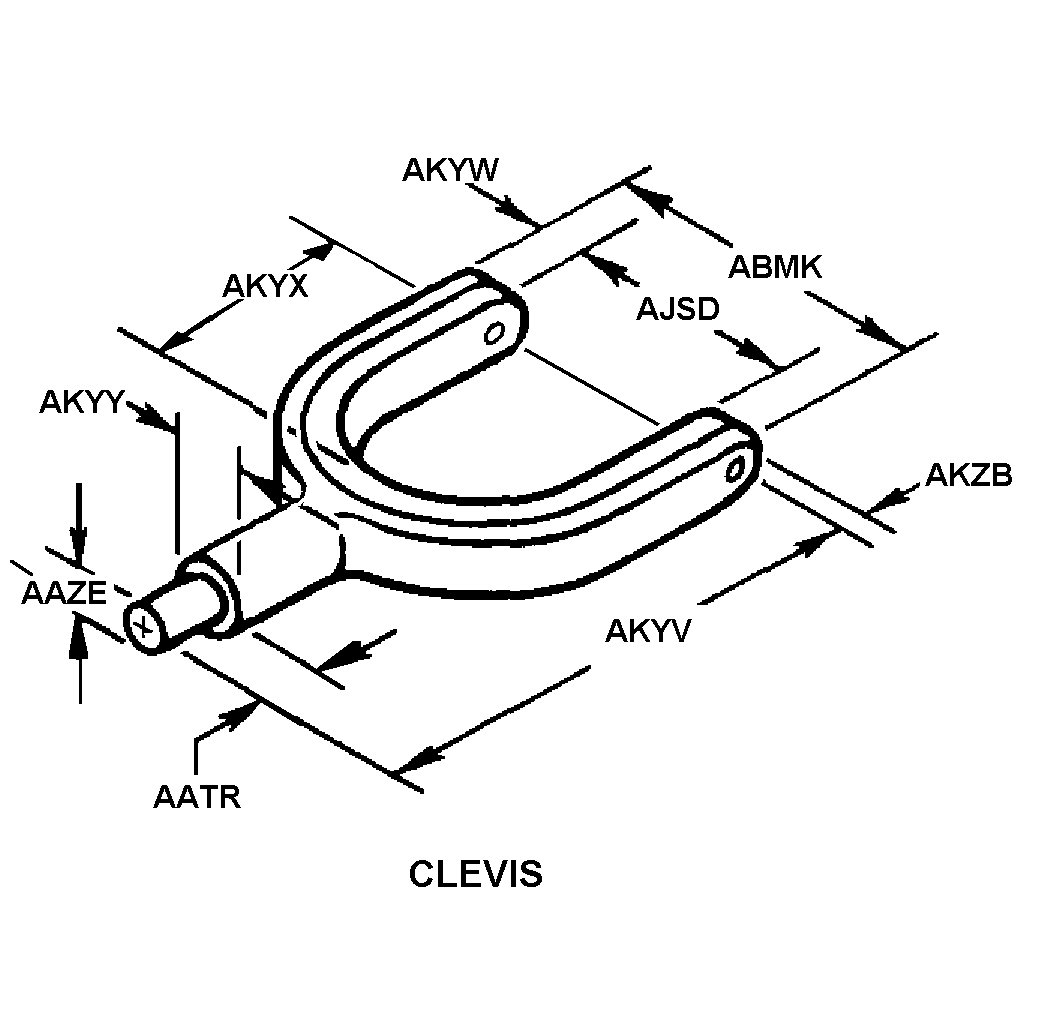

CLEVIS
Cross Reference | NSN 5340-00-151-7123
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 215-70684-1 | 80378 | TRIUMPH AEROSTRUCTURES, LLCDBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Technical Data | NSN 5340-00-151-7123
| Characteristic | Specifications |
|---|---|
| METALLIC HARDNESS RATING | 39.0 MINIMUM ROCKWELL C AND 43.0 MAXIMUM ROCKWELL C |
| STYLE DESIGNATOR | CLEVIS |
| SHANK LENGTH | 0.870 INCHES NOMINAL |
| SHANK DIAMETER | 0.740 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| OVERALL WIDTH | 2.013 INCHES MINIMUM AND 2.018 INCHES MAXIMUM |
| FORK SPAN WIDTH | 1.200 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 4.000 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.409 INCHES NOMINAL |
| FORK DEPTH | 0.790 INCHES NOMINAL |
| SHANK SHOULDER DIAMETER | 0.190 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO FORK END | 0.310 INCHES NOMINAL |
| SECURING PIN HOLE DIAMETER | 0.330 INCHES NOMINAL |
| HOLE DIAMETER | 0.625 INCHES MINIMUM AND 0.626 INCHES MAXIMUM |
| SPECIAL FEATURES | HEIGHT 0.470 IN |
