NSN 5340-00-151-5991
Part Details | ACCESS COVER
5340-00-151-5991 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 5340001515991, 5340001515991, 8725211, 5340-00-151-5991, 00-151-5991, 5340001515991, 001515991
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 20, 1971 | 00-151-5991 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS

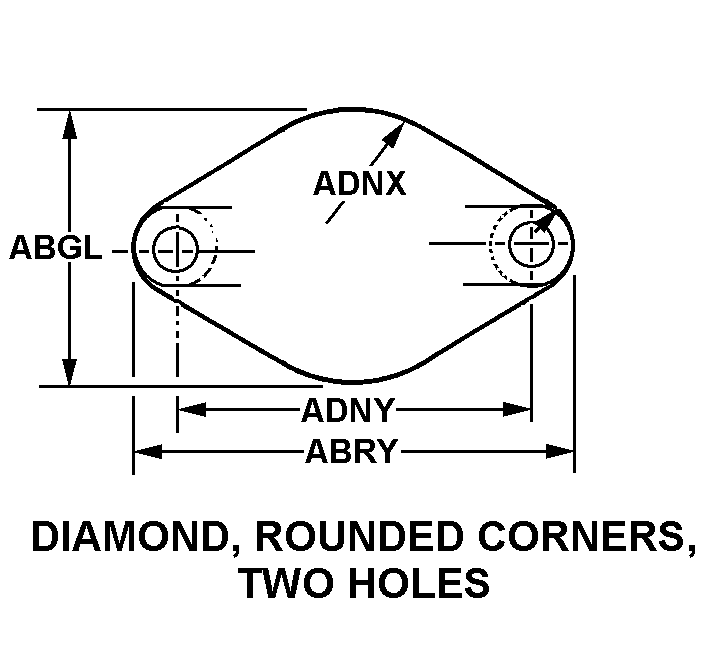

DIAMOND, ROUNDED CORNERS, TWO HOLES
UNTHREADED HOLE
Cross Reference | NSN 5340-00-151-5991
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5340001515991 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 5340001515991 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 8725211 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-151-5991
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | THREADED FASTENER |
| MATERIAL | ALUMINUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-601 FED SPEC SINGLE MATERIAL RESPONSE |
| PERIPHERAL SHAPE STYLE | DIAMOND, ROUNDED CORNERS, TWO HOLES |
| WIDTH | 2.380 INCHES NOMINAL |
| LENGTH | 3.050 INCHES MINIMUM AND 3.060 INCHES MAXIMUM |
| BODY RADIUS | 1.190 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 2.370 INCHES MINIMUM AND 2.380 INCHES MAXIMUM |
| CORNER RADIUS | 0.340 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | CIRCULAR RECESS |
| INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| FLANGE THICKNESS | 0.380 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.380 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.030 INCHES NOMINAL |
| BODY THICKNESS | 0.180 INCHES NOMINAL |
| MOUNTING OPENING SHAPE STYLE | UNTHREADED HOLE |
| HOLE DIAMETER | 0.344 INCHES NOMINAL |
| SPECIAL FEATURES | RECESS CHAMFERED 30 DEG TO 1.120 IN. DIA |
