NSN 5340-00-150-4787
Part Details | LINE SUPPORTING STRAP
5340-00-150-4787 A flexible strap, furnished with a buckle, specificifically designed to support other items, such as cable(s), wire(s), tube(s), and the like. The buckle may be permanently assembled and may be provided with a mounting feature. The strap may be used to bridge a channel by mounting the buckle and strap separately. Excludes CLAMP, LOOP; STRAP, RETAINING; STRAP, LEATHER; and STRAP, WEBBING.
Alternate Parts: 66833DR, 668-3-3DR, 5340-00-150-4787, 00-150-4787, 5340001504787, 001504787
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 10, 1971 | 00-150-4787 | 22129 ( STRAP, LINE SUPPORTING ) |
REFERENCE DRAWINGS & PICTURES

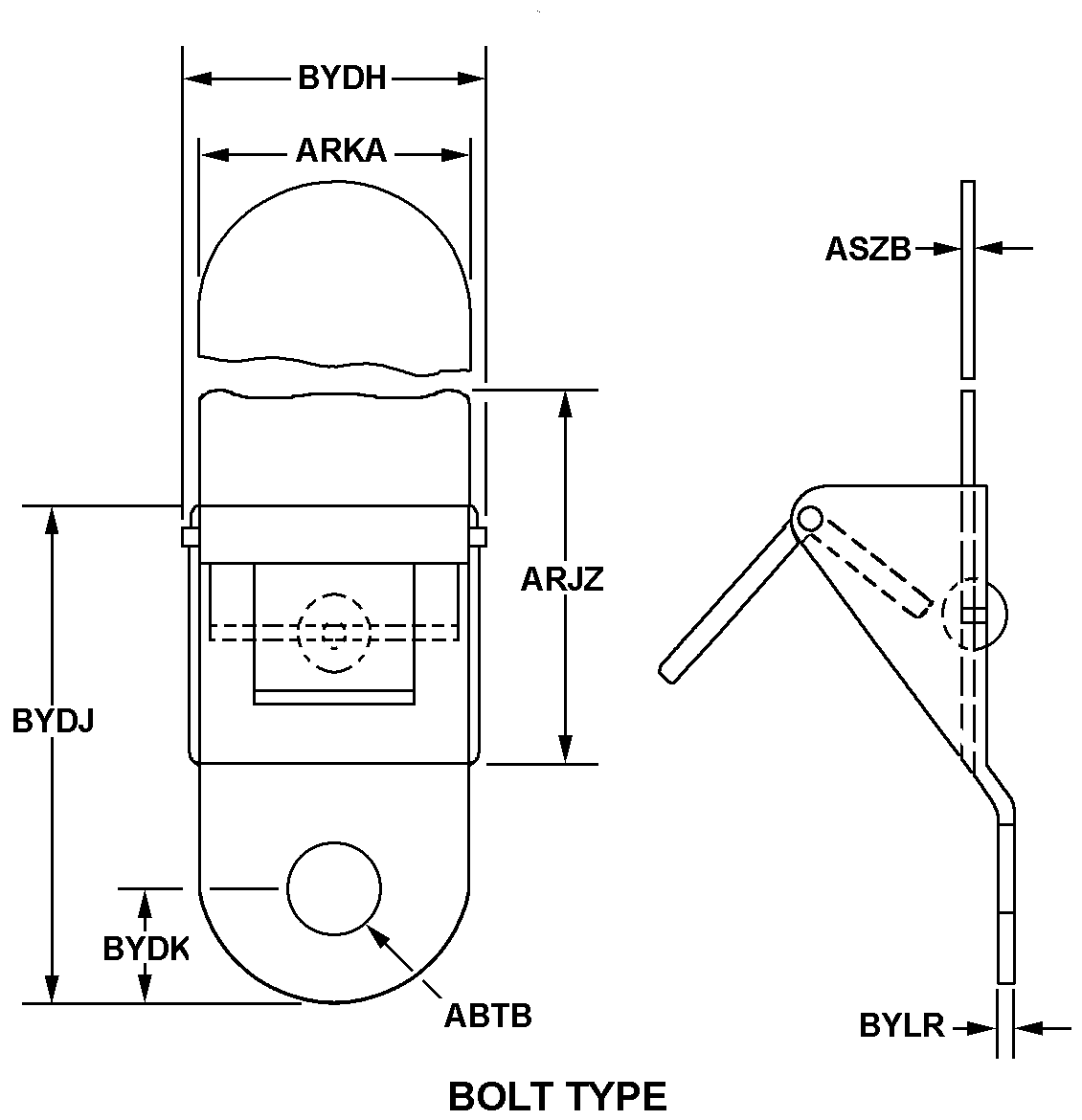

BOLT TYPE
Cross Reference | NSN 5340-00-150-4787
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 668-3-3DR | 83930 | TRANSDIGM INCDBA ADEL WIGGINS GROUP-COMMERCIAL |
Technical Data | NSN 5340-00-150-4787
| Characteristic | Specifications |
|---|---|
| STRAP MATERIAL | COTTON AND RUBBER, SYNTHETIC |
| BUCKLE MATERIAL | STEEL, MIL-S-7952 |
| BUCKLE SURFACE TREATMENT | CADMIUM, AN-P-61 |
| STYLE DESIGNATOR | BOLT TYPE |
| MOUNTING HOLE DIAMETER | 0.199 INCHES NOMINAL |
| STRAP LENGTH | 3.000 INCHES NOMINAL |
| STRAP WIDTH | 0.625 INCHES NOMINAL |
| STRAP THICKNESS | 0.062 INCHES NOMINAL |
| BUCKLE OVERALL WIDTH | 1.938 INCHES NOMINAL |
| BUCKLE LENGTH | 1.062 INCHES NOMINAL |
| DISTANCE FROM MOUNTING HOLE CENTER TO BUCKLE END | 0.250 INCHES NOMINAL |
| BUCKLE MATERIAL THICKNESS | 0.035 INCHES NOMINAL |
| ANTIABRASION PAD | NOT INCLUDED |
