NSN 5340-00-150-2775
Part Details | SNAP HOOK
5340-00-150-2775 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Alternate Parts: MS518283S, MS51828-3S, M437701SWZE3, M43770/1-SWZE3, 5340-00-150-2775, 00-150-2775, 5340001502775, 001502775
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 24, 1970 | 00-150-2775 | 16954 ( SNAP HOOK ) |
REFERENCE DRAWINGS & PICTURES
ROUND EYE

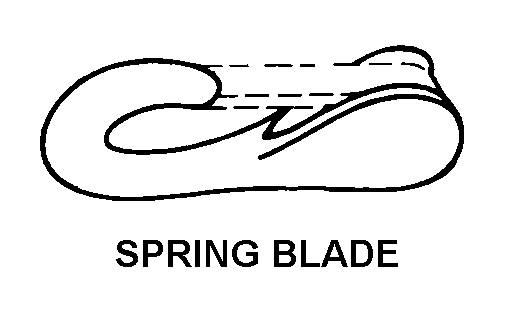

SPRING BLADE
Cross Reference | NSN 5340-00-150-2775
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51828-3S | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| M43770/1-SWZE3 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5340-00-150-2775
| Characteristic | Specifications |
|---|---|
| HOOK STYLE DESIGNATOR | SPRING BLADE |
| BLADE MATERIAL | STEEL |
| DESIGN TYPE | FIXED |
| END POSITION | CONNECTION END AT RIGHT ANGLE TO PLANE OF HOOK END |
| END CONNECTION STYLE | 6 ROUND EYE |
| INSIDE WIDTH | 0.281 INCHES NOMINAL |
| INSIDE LENGTH | 1.125 INCHES NOMINAL |
| HOOK MATERIAL | STEEL |
| CONNECTION END MATERIAL | STEEL |
| OVERALL LENGTH | 2.094 INCHES NOMINAL |
| RUBBER COVERED FEATURE | NOT INCLUDED |
| UNATTACHED RING | NOT INCLUDED |
