NSN 5340-00-150-2615
Part Details | ANGLE BRACKET
5340-00-150-2615 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.
Alternate Parts: 84000220, 5340-00-150-2615, 00-150-2615, 5340001502615, 001502615
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 08, 1970 | 00-150-2615 | 16900 ( BRACKET, ANGLE ) |
REFERENCE DRAWINGS & PICTURES
END RADIUS
SQUARE
ONE HOLE

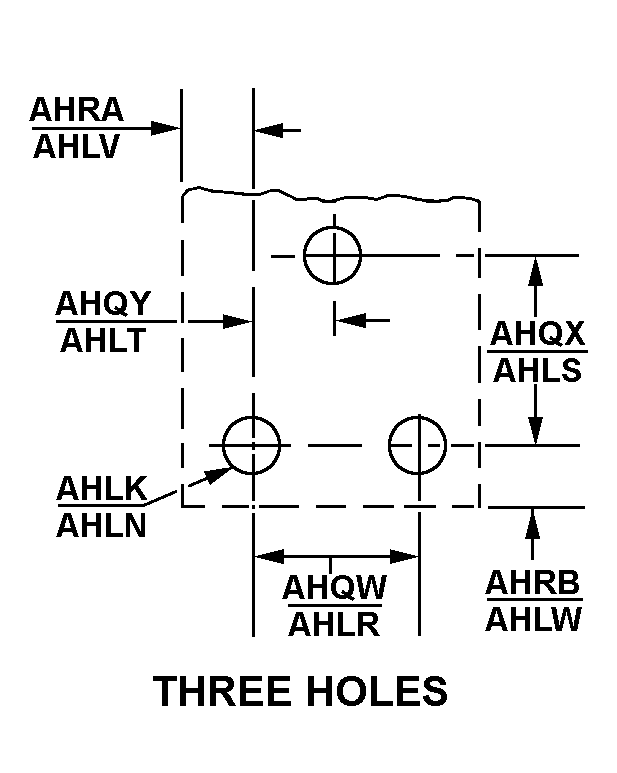

THREE HOLES
END RADIUS
SQUARE
ONE HOLE
THREE HOLES
ANGLE
Cross Reference | NSN 5340-00-150-2615
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 84000220 | 42470 | NCR CORPORATIONDBA NCR |
Technical Data | NSN 5340-00-150-2615
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-634 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL2 FED SPEC ALL TREATMENT RESPONSES |
| STYLE DESIGNATOR | ANGLE |
| FIRST LEG LENGTH | 0.750 INCHES NOMINAL |
| SECOND LEG LENGTH | 1.375 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.040 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.040 INCHES NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | SQUARE |
| FIRST LEG WIDTH | 1.000 INCHES NOMINAL |
| SECOND LEG WIDTH | 1.000 INCHES NOMINAL |
| SECOND LEG END RADIUS | 0.500 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | THREE HOLES |
| FIRST LEG HOLE DIAMETER | 0.136 INCHES MINIMUM AND 0.139 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN LOWER HOLE CENTERS ALONG WIDTH | 0.625 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 0.312 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG WIDTH | 0.312 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.188 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.210 INCHES NOMINAL |
| SECOND LEG HOLE DIAMETER | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.500 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.500 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | END RADIUS |
| SECOND LEG HOLE ARRANGEMENT STYLE | ONE HOLE |
| SPECIAL FEATURES | HOLE SECOND LEG EXTERNAL KEYWAY 1/8 IN. BY 3/32 IN. |
