NSN 5340-00-150-2537
Part Details | SPRING TENSION CLIP
5340-00-150-2537 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Alternate Parts: 6866160, 5340-00-150-2537, 00-150-2537, 5340001502537, 001502537
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 20, 1970 | 00-150-2537 | 20815 ( CLIP, SPRING TENSION ) |
REFERENCE DRAWINGS & PICTURES

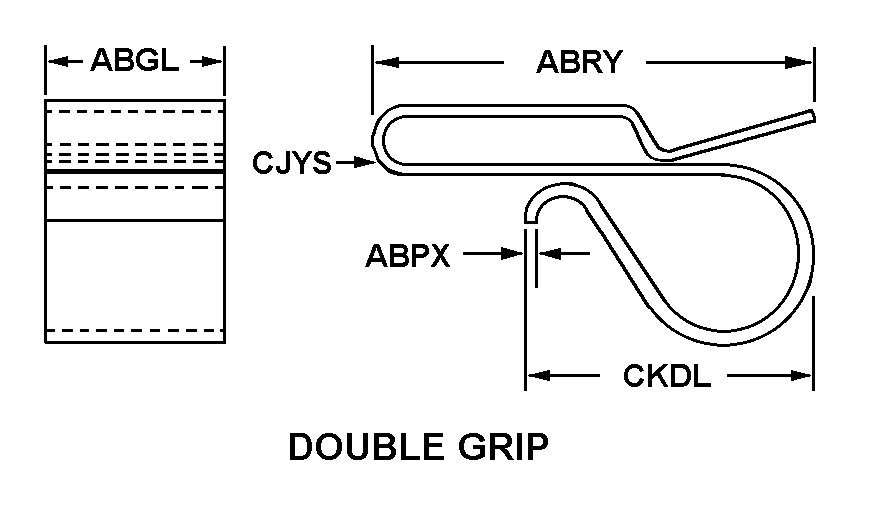

DOUBLE GRIP
Cross Reference | NSN 5340-00-150-2537
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6866160 | 73342 | ALLISON TRANSMISSION, INC. |
Technical Data | NSN 5340-00-150-2537
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 5 DOUBLE GRIP |
| HOLE DIAMETER | 0.285 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| WIDTH | 0.615 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
| LENGTH | 2.906 INCHES NOMINAL |
| LOOP OPENING WIDTH | 1.804 INCHES NOMINAL |
| LOOP/HOLDING DIMENSION | 1.995 INCHES NOMINAL |
| HOLE QUANTITY | 1 |
| MOUNTING METHOD | UNTHREADED HOLE |
