NSN 5340-00-148-1615
Part Details | LINE SUPPORTING STRAP
5340-00-148-1615 A flexible strap, furnished with a buckle, specificifically designed to support other items, such as cable(s), wire(s), tube(s), and the like. The buckle may be permanently assembled and may be provided with a mounting feature. The strap may be used to bridge a channel by mounting the buckle and strap separately. Excludes CLAMP, LOOP; STRAP, RETAINING; STRAP, LEATHER; and STRAP, WEBBING.
Alternate Parts: 668416FR, 668-4-16FR, 8704412, 5340-00-148-1615, 00-148-1615, 5340001481615, 001481615
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 24, 1971 | 00-148-1615 | 22129 ( STRAP, LINE SUPPORTING ) |
REFERENCE DRAWINGS & PICTURES

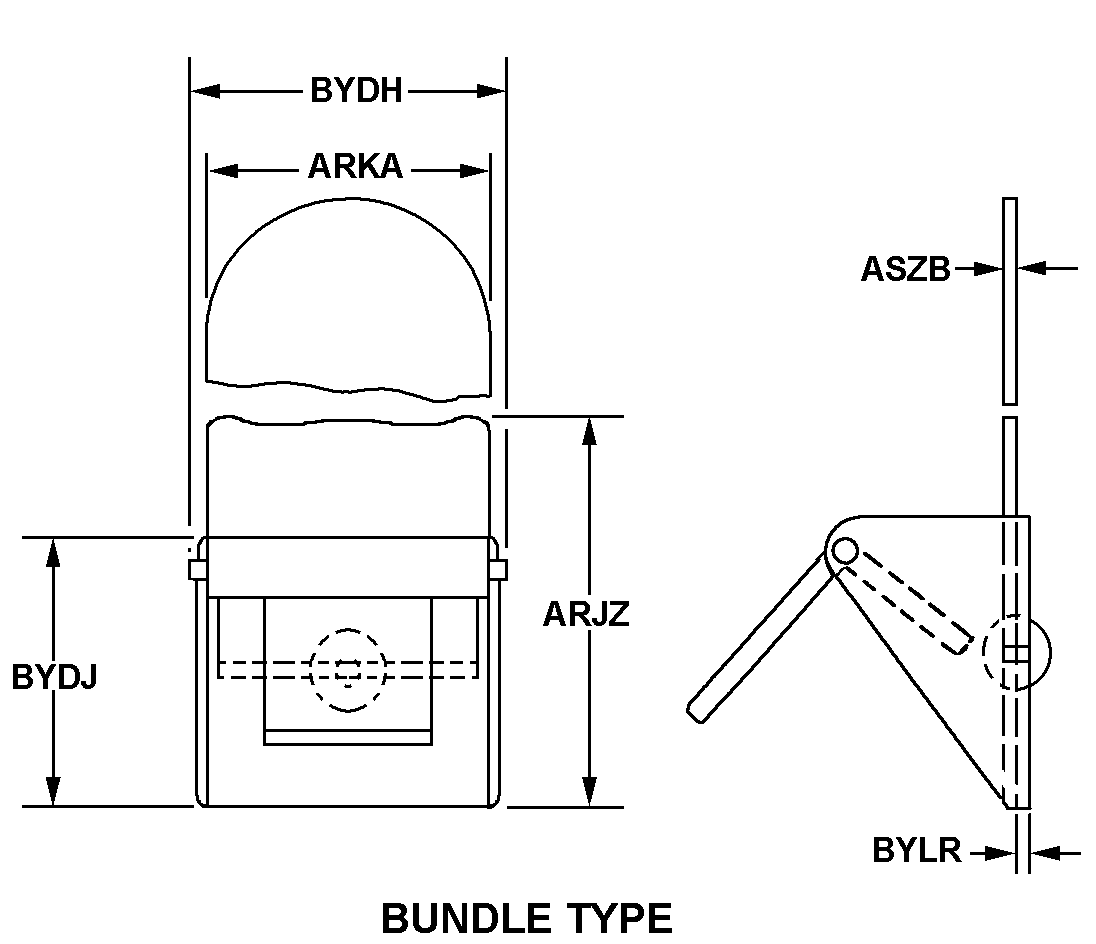

BUNDLE TYPE
Cross Reference | NSN 5340-00-148-1615
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 668-4-16FR | 83930 | TRANSDIGM INCDBA ADEL WIGGINS GROUP-COMMERCIAL |
| 8704412 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-148-1615
| Characteristic | Specifications |
|---|---|
| STRAP MATERIAL | FIBERGLASS, SYNTHETIC RUBBER IMPREGNATED |
| BUCKLE MATERIAL | STEEL |
| BUCKLE SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | BUNDLE TYPE |
| STRAP LENGTH | 16.000 INCHES NOMINAL |
| STRAP WIDTH | 0.625 INCHES NOMINAL |
| STRAP THICKNESS | 0.062 INCHES NOMINAL |
| BUCKLE OVERALL WIDTH | 0.938 INCHES NOMINAL |
| BUCKLE LENGTH | 1.125 INCHES NOMINAL |
| BUCKLE MATERIAL THICKNESS | 0.035 INCHES NOMINAL |
| ANTIABRASION PAD | NOT INCLUDED |
