NSN 5340-00-147-8221
Part Details | RIGID CASTER
5340-00-147-8221 A caster designed to maintain the rotation of the wheel(s) or spherical constructed item in one plane.
Alternate Parts: 2014UM, 201-4UM, 5340-00-147-8221, 00-147-8221, 5340001478221, 001478221
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 01, 1971 | 00-147-8221 | 06187 ( CASTER, RIGID ) |
REFERENCE DRAWINGS & PICTURES

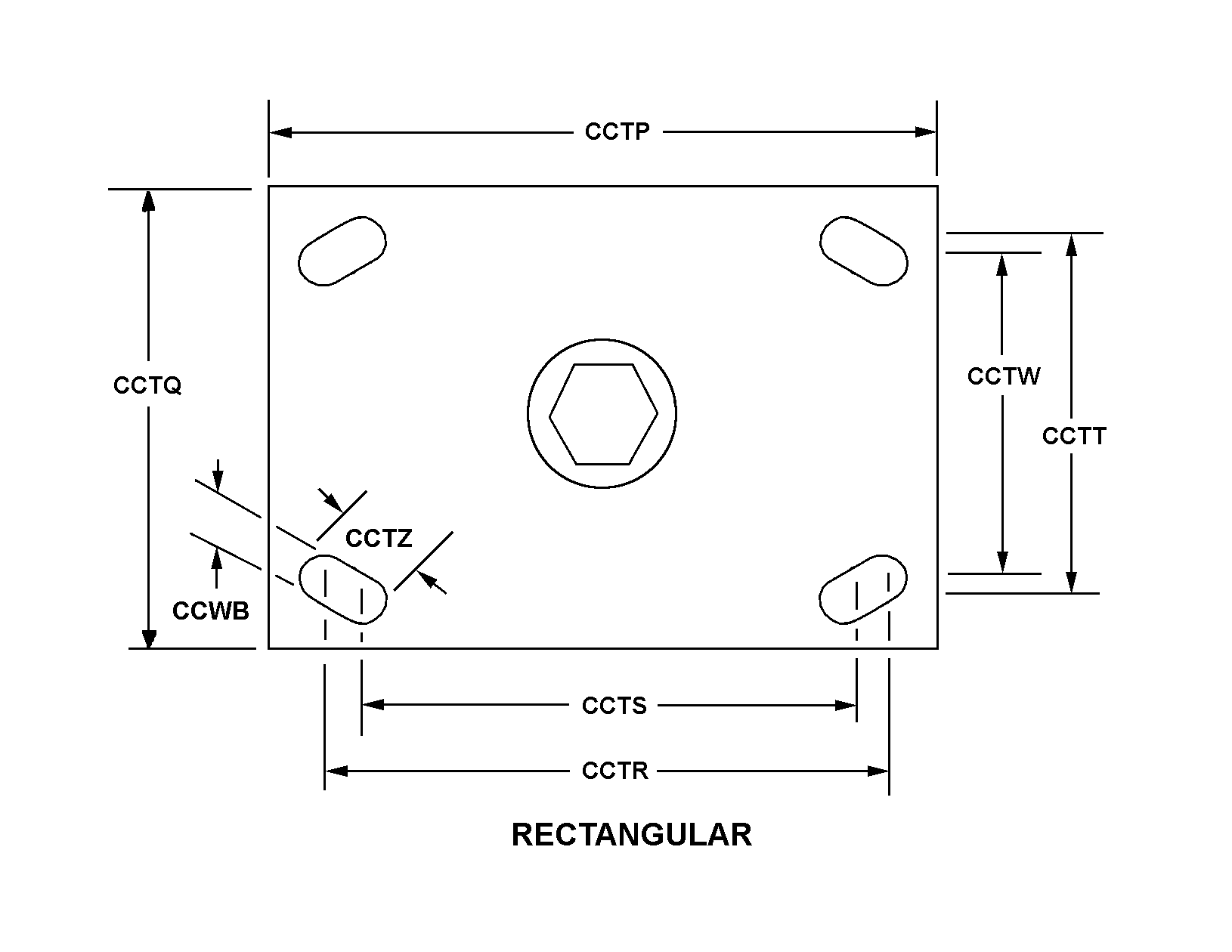

RECTANGULAR
RIGID
Cross Reference | NSN 5340-00-147-8221
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 201-4UM | 86420 | PAYSON CASTERS, INC.DBA ROLLA WAY CONVEYORS |
Technical Data | NSN 5340-00-147-8221
| Characteristic | Specifications |
|---|---|
| SAFE OPERATING LOAD RATING | 5000.0 POUNDS NOMINAL |
| STYLE DESIGNATOR | RIGID |
| WHEEL DIAMETER | 4.000 INCHES NOMINAL |
| TREAD WIDTH | 2.000 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 5.625 INCHES NOMINAL |
| PLATE STYLE | RECTANGULAR |
| CASTER PLATE LENGTH | 4.500 INCHES NOMINAL |
| CASTER PLATE WIDTH | 4.000 INCHES NOMINAL |
| CENTER TO CENTER MAJOR DISTANCE BETWEEN MOUNTING SLOTS ALONG LENGTH | 3.625 INCHES NOMINAL |
| CENTER TO CENTER MINOR DISTANCE BETWEEN MOUNTING SLOTS ALONG LENGTH | 3.000 INCHES NOMINAL |
| CENTER TO CENTER MAJOR DISTANCE BETWEEN MOUNTING SLOTS ALONG WIDTH | 3.000 INCHES NOMINAL |
| CENTER TO CENTER MINOR DISTANCE BETWEEN MOUNTING SLOTS ALONG WIDTH | 2.625 INCHES NOMINAL |
| CASTER PLATE MOUNTING SLOT LENGTH | 0.687 INCHES NOMINAL |
| CASTER PLATE MOUNTING SLOT WIDTH | 0.375 INCHES NOMINAL |
| WHEEL BEARING TYPE | J ANY ACCEPTABLE |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | SOLID |
| FEATURES PROVIDED | AXLE LUBRICATION FITTING |
