NSN 5340-00-145-8393
Part Details | PIPE HANGER
5340-00-145-8393 A metallic or nonmetallic item designed to suspend, support, retain, and/or position items such as cable(s), conduit(s), pipe(s), tube(s), and the like from a structure. It may be fastened vertically or horizontally to the structure by means of rod(s), bolt(s), screw(s), and the like. Excludes CLAMP (1), LOOP; STRAP, RETAINING; CLAMP (1), ELECTRICAL; HANGER, WIRE STRAND, SUPPORT (1), ELECTRICAL CABLE; HANGER, CABLE; and hook, support.
Alternate Parts: U728, J1210, 5340-00-145-8393, 00-145-8393, 5340001458393, 001458393
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 04, 1971 | 00-145-8393 | 42764 ( HANGER, PIPE ) |
REFERENCE DRAWINGS & PICTURES

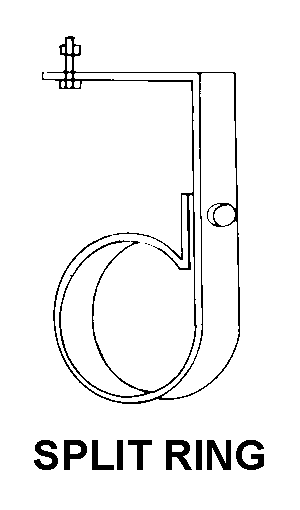

SPLIT RING
Cross Reference | NSN 5340-00-145-8393
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| U728 | 96195 | UNISTRUT INTERNATIONAL CORPORATIONDBA UNISTRUT DIVERSIFIED PRODUCTS |
| J1210 | 96195 | UNISTRUT INTERNATIONAL CORPORATIONDBA UNISTRUT DIVERSIFIED PRODUCTS |
Technical Data | NSN 5340-00-145-8393
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | SPLIT RING |
| PIPE ACCOMMODATION DIAMETER | 1.000 INCHES NOMINAL |
