NSN 5340-00-145-6372
Part Details | FRICTION CATCH
5340-00-145-6372 A nonpositive fastening device consisting of (1) a SPRING ACTUATED BALL, BOLT, PLUNGER, DOUBLE BEVEL LATCH, or the like, which is designed to be inserted and retained by compression of the spring, in a recess or STRIKE, CATCH. It may include the STRIKE, CATCH or (2) a two piece item consisting of a STUD, FRICTION CATCH and a RECEPTACLE, FRICTION CATCH STUD. The items are designed to position a door, cover, panel, or the like, in a fixed position and are released by normal pull. The items do not have provisions such as a knob, handle, or lever to actuate the bolt or plunger. Excludes CATCH MAGNETIC.
Alternate Parts: 10164862, 10164862, 5340-00-145-6372, 00-145-6372, 5340001456372, 001456372
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 04, 1971 | 00-145-6372 | 06627 ( CATCH, FRICTION ) |

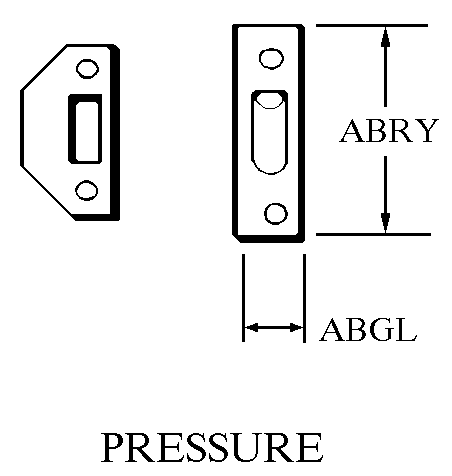

REFERENCE DRAWINGS & PICTURES
PRESSURE
Cross Reference | NSN 5340-00-145-6372
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10164862 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 10164862 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-145-6372
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PRESSURE |
| WIDTH | 0.605 INCHES MINIMUM AND 0.645 INCHES MAXIMUM |
| LENGTH | 2.000 INCHES NOMINAL |
