NSN 5340-00-143-8861
Part Details | PAD EYE
5340-00-143-8861 A rigid, metal, platelike item with an edgewise projection containing one or more openings. The opening is usually round or elliptical in shape. It is normally welded, bolted, or otherwise fixed to a structure. It is used as a catch or point of attachment for other items such as hooks, rope, and the like. Excludes, STAPLE, HASP; STRIKE, CATCH; and BRACKET, EYE, NON ROTATING SHAFT. See also ADAPTER (1), AIRCRAFT MOORING; ADAPTER (1), AIRCRAFT TOWING; TOWING EYE, AIRCRAFT; BOLT, EYE; COUPLER (as modified); and HASP, HINGED.
Alternate Parts: MS519301, MS51930-1, XX0020873, XX002-0873, 5340-00-143-8861, 00-143-8861, 5340001438861, 001438861
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 26, 1970 | 00-143-8861 | 15650 ( PAD EYE ) |
REFERENCE DRAWINGS & PICTURES

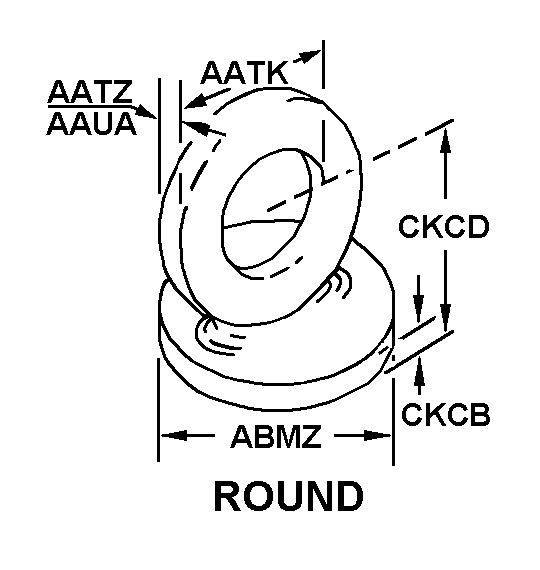

ROUND
Cross Reference | NSN 5340-00-143-8861
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51930-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| XX002-0873 | H2229 | RDM TECHNOLOGY B.V. |
Technical Data | NSN 5340-00-143-8861
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| EYE INSIDE DIAMETER | 0.250 INCHES NOMINAL |
| EYE STOCK DIAMETER | 0.185 INCHES MINIMUM |
| DIAMETER | 0.620 INCHES NOMINAL |
| DISTANCE BETWEEN EYE CENTERLINE AND PAD BOTTOM | 0.440 INCHES NOMINAL |
| CONSTRUCTION | FORGED |
| FEATURES PROVIDED | SMOOTH |
