NSN 5340-00-140-4633
Part Details | FRICTION CATCH
5340-00-140-4633 A nonpositive fastening device consisting of (1) a SPRING ACTUATED BALL, BOLT, PLUNGER, DOUBLE BEVEL LATCH, or the like, which is designed to be inserted and retained by compression of the spring, in a recess or STRIKE, CATCH. It may include the STRIKE, CATCH or (2) a two piece item consisting of a STUD, FRICTION CATCH and a RECEPTACLE, FRICTION CATCH STUD. The items are designed to position a door, cover, panel, or the like, in a fixed position and are released by normal pull. The items do not have provisions such as a knob, handle, or lever to actuate the bolt or plunger. Excludes CATCH MAGNETIC.
Alternate Parts: 3176081, 317608-1, 3098005000, 5340-00-140-4633, 00-140-4633, 5340001404633, 001404633
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 15, 1971 | 00-140-4633 | 06627 ( CATCH, FRICTION ) |
REFERENCE DRAWINGS & PICTURES

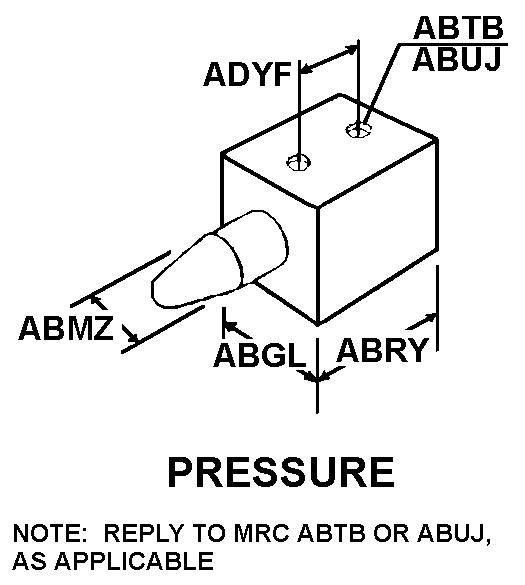

PRESSURE
Cross Reference | NSN 5340-00-140-4633
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 317608-1 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
| 3098005000 | 81860 | HUTCHINSON AEROSPACE & INDUSTRY,INC. |
Technical Data | NSN 5340-00-140-4633
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PRESSURE |
| WIDTH | 0.750 INCHES NOMINAL |
| DIAMETER | 0.437 INCHES NOMINAL |
| LENGTH | 1.062 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.500 INCHES NOMINAL |
| THREAD SIZE | 8-32 |
