NSN 5340-00-139-0145
Part Details | CLAMPING CATCH
5340-00-139-0145 A positive fastening device consisting of a mountable base with an extended loop, claw, or the like. It may include a catch strike and mounting hardware for its complete installation on flat surfaces. The loop, claw, or the like can be manually engaged or disengaged readily for the purpose of securing the mating sections of a suitcase, locker-trunk, shipping and storage container, prefabricated building, tool chest or the like. Excludes CATCH, ELBOW; CATCH, FLUSH; CATCH, FRICTION; and LATCH or LOCK (as modified).
Alternate Parts: 6163234, 616323-4, SCD20649SS, SCD20649SS, 5340-00-139-0145, 00-139-0145, 5340001390145, 001390145
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 09, 1971 | 00-139-0145 | 26525 ( CATCH, CLAMPING ) |
REFERENCE DRAWINGS & PICTURES

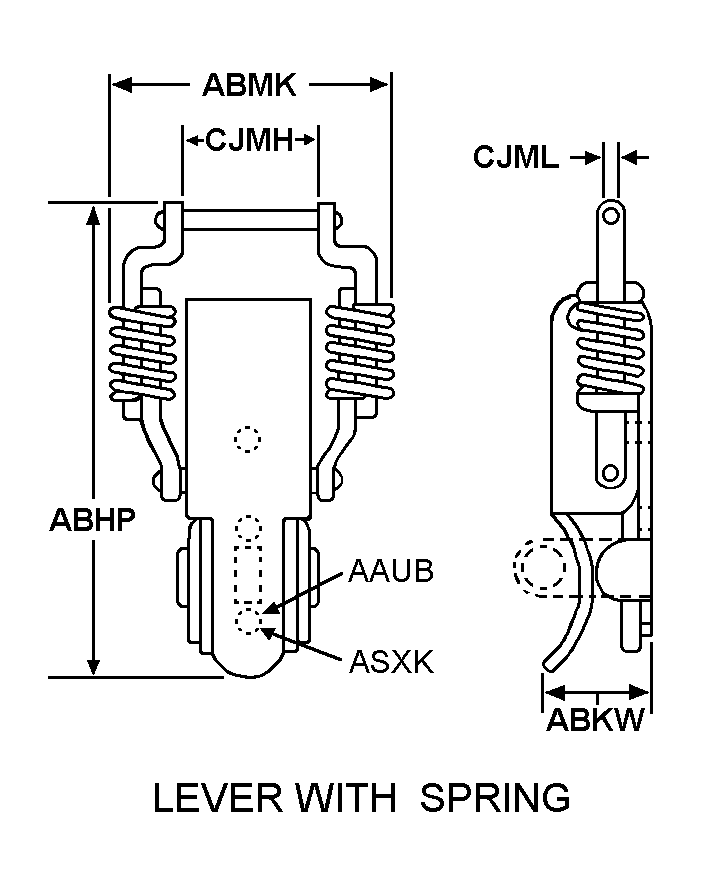

LEVER WITH SPRING
Cross Reference | NSN 5340-00-139-0145
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 616323-4 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| SCD20649SS | 98003 | NIELSEN HARDWARE CORP |
| SCD20649SS | 1RRL5 | NIELSEN HARDWARE CORPORATIONDBA NIELSEN/SESSIONS |
Technical Data | NSN 5340-00-139-0145
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LEVER WITH SPRING |
| HOLE DIAMETER | 0.219 INCHES NOMINAL |
| HOLE QUANTITY | 3 |
| DESIGN TYPE | LOOP ENGAGING |
| OPERATION METHOD | LEVER ON OUTSIDE |
