NSN 5340-00-137-3282
Part Details | CLAMPING CATCH
5340-00-137-3282 A positive fastening device consisting of a mountable base with an extended loop, claw, or the like. It may include a catch strike and mounting hardware for its complete installation on flat surfaces. The loop, claw, or the like can be manually engaged or disengaged readily for the purpose of securing the mating sections of a suitcase, locker-trunk, shipping and storage container, prefabricated building, tool chest or the like. Excludes CATCH, ELBOW; CATCH, FLUSH; CATCH, FRICTION; and LATCH or LOCK (as modified).
Alternate Parts: 51L8311AA, 51L83-1-1AA, 51L83 1H1AA, 713411001, 713411-001, 5340-00-137-3282, 00-137-3282, 5340001373282, 001373282
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 16, 1971 | 00-137-3282 | 26525 ( CATCH, CLAMPING ) |

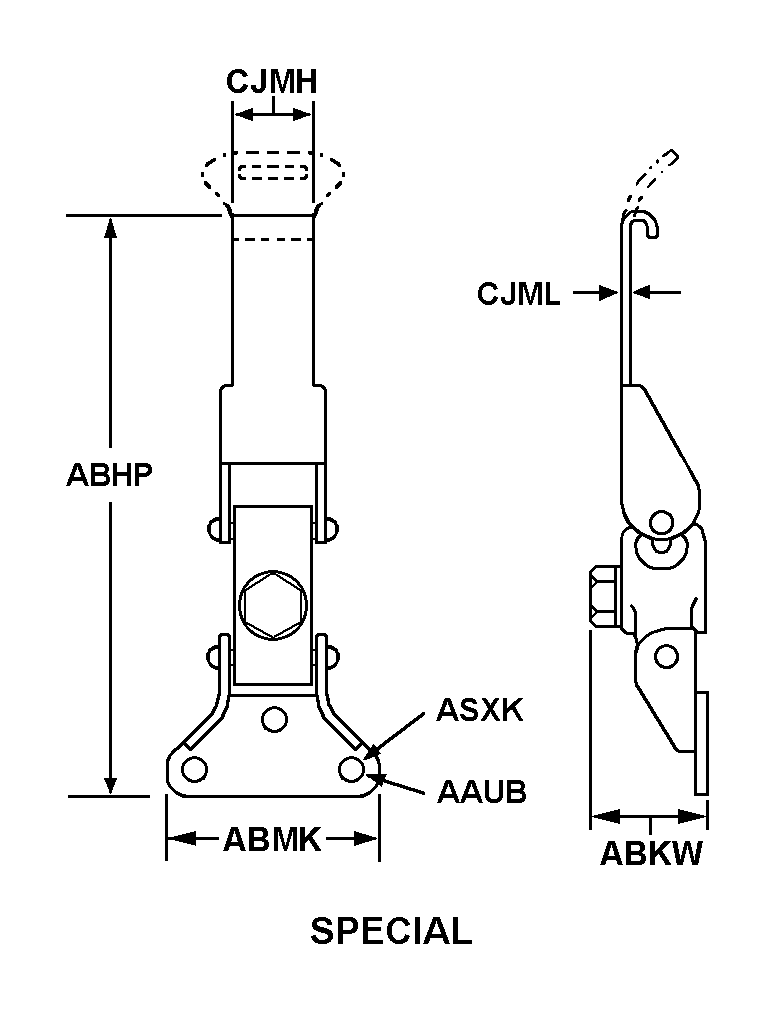

REFERENCE DRAWINGS & PICTURES
SPECIAL
Cross Reference | NSN 5340-00-137-3282
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 51L83-1-1AA | 71286 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| 51L83 1H1AA | 71286 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| 713411-001 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5340-00-137-3282
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPECIAL |
| HOLE DIAMETER | 0.129 INCHES MINIMUM AND 0.134 INCHES MAXIMUM |
| ENGAGING SURFACE WIDTH | 0.860 INCHES NOMINAL |
| ENGAGING SURFACE THICKNESS | 0.065 INCHES NOMINAL |
| HOLE QUANTITY | 3 |
| OVERALL LENGTH | 3.370 INCHES NOMINAL |
| OVERALL WIDTH | 1.200 INCHES NOMINAL |
| OVERALL HEIGHT | 0.450 INCHES NOMINAL |
| DESIGN TYPE | LOOP ENGAGING |
