NSN 5340-00-068-4116
Part Details | HAND CRANK
5340-00-068-4116 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.
Alternate Parts: AC320073, AC3200-73, 5340-00-068-4116, 00-068-4116, 5340000684116, 000684116
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-068-4116 | 17533 ( CRANK, HAND ) |
REFERENCE DRAWINGS & PICTURES
EXTERNAL

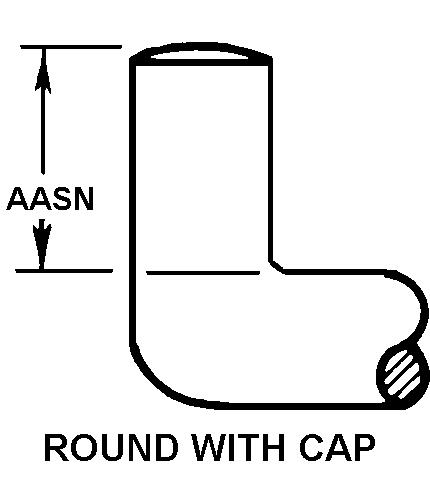

ROUND WITH CAP

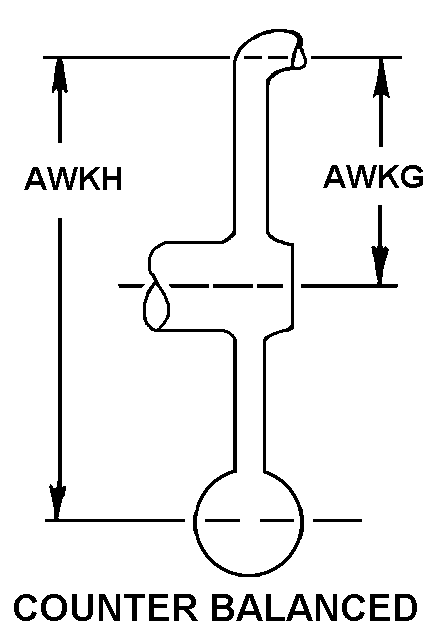

COUNTER BALANCED
SQUARE
Cross Reference | NSN 5340-00-068-4116
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AC3200-73 | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
Technical Data | NSN 5340-00-068-4116
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| ARM STYLE | COUNTER BALANCED |
| CRANK THROW LENGTH | 4.750 INCHES NOMINAL |
| ARM LENGTH | 9.250 INCHES NOMINAL |
| DRIVE END STYLE | EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | 0.875 INCHES NOMINAL |
| LENGTH FROM END TO ARM CENTER | 4.000 INCHES NOMINAL |
| DRIVE FACILITY STYLE | SQUARE |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| DRIVE WIDTH | 0.488 INCHES NOMINAL |
| CRANK OVERALL LENGTH | 9.510 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | INTEGRAL |
| HANDLE STYLE | ROUND WITH CAP |
| HANDLE LENGTH | 4.750 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
