NSN 5340-00-068-2293
Part Details | LOCKING STAY
5340-00-068-2293 A device designed to support either a slotted (sliding action) or a hinged device to support in the unfolded or extended position. Commonly used to brace and/or lock into position such items as card table legs, chest lids, folding counters, desk tops and trunk lids.
Alternate Parts: 446K, 5340-00-068-2293, 00-068-2293, 5340000682293, 000682293
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-068-2293 | 67545 ( STAY, LOCKING ) |

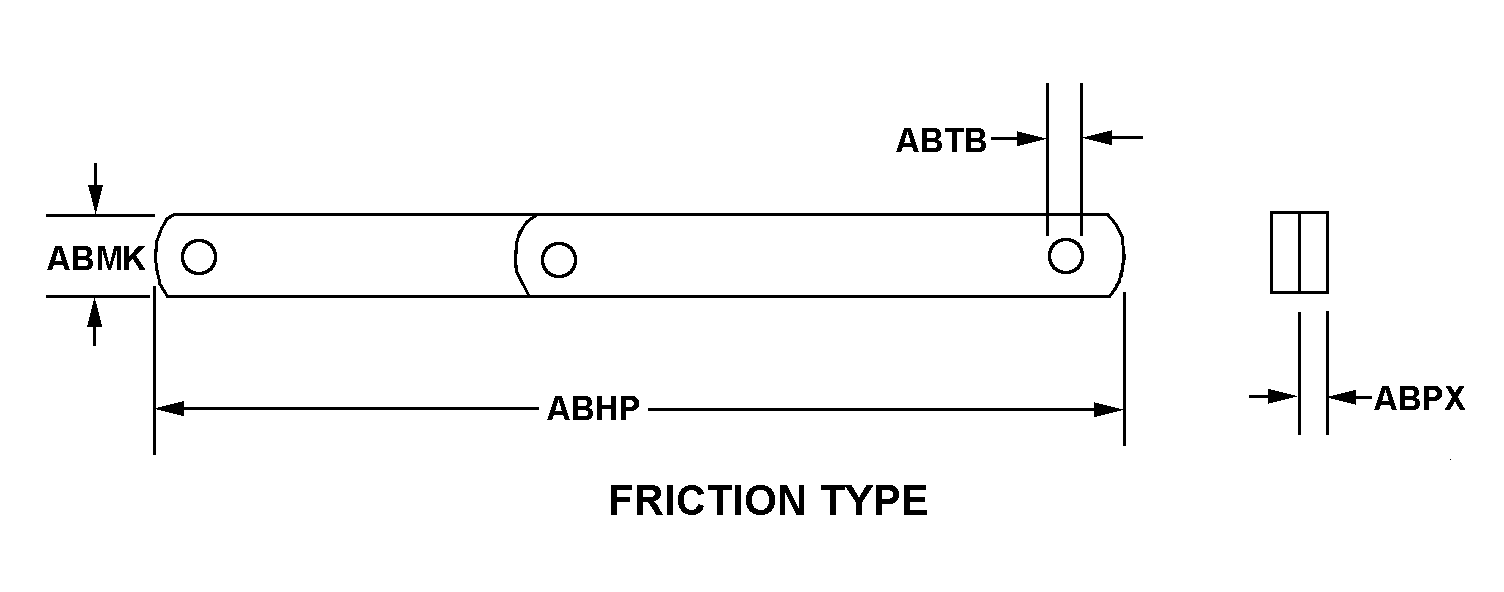

REFERENCE DRAWINGS & PICTURES
FRICTION TYPE
Cross Reference | NSN 5340-00-068-2293
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 446K | 87541 | STANLEY HARDWARE CO INC |
Technical Data | NSN 5340-00-068-2293
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | FRICTION TYPE |
| OVERALL LENGTH | 16.376 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.165 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.193 INCHES NOMINAL |
| OPERATIONAL DIRECTION | LEFT-HAND |
| OFFSET QUANTITY | 2 |
| FEATURES PROVIDED | RETAINING LUG |
