NSN 5340-00-068-1088
Part Details | BUTT HINGE
5340-00-068-1088 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Alternate Parts: FFH116, 5340-00-068-1088, 00-068-1088, 5340000681088, 000681088
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-068-1088 | 22894 ( HINGE, BUTT ) |
REFERENCE DRAWINGS & PICTURES

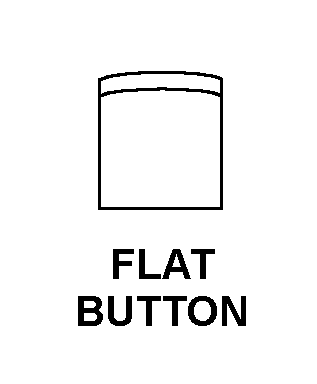

FLAT BUTTON
SINGLE SAFETY
Cross Reference | NSN 5340-00-068-1088
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFH116 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5340-00-068-1088
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | BRASS OVERALL |
| STYLE DESIGNATOR | 4 SINGLE SAFETY |
| MATERIAL THICKNESS | 0.130 INCHES NOMINAL |
| BODY WIDTH | 4.000 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 2.000 INCHES NOMINAL |
| PIN TIP STYLE | FLAT BUTTON |
| HINGE MOUNTING TYPE | FULL MORTISE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| PIN REMOVABILITY | REMOVABLE |
| RISING PIN | NOT INCLUDED |
| KNUCKLE TYPE | BALL BEARING |
| KNUCKLE QUANTITY | A2$A3 |
| MOUNTING HOLE QUANTITY | 8 |
| PERFORMANCE TYPE | MEDIUM DUTY |
| NONDEFINITIVE SPEC/STD DATA | 2102 TYPE |
| FURNISHED ITEMS | SCREW |
