NSN 5340-00-062-5431
Part Details | BUMPER
5340-00-062-5431 An item so designed that when attached to an object, protects that objec from damage by reducing the force of impact with another object. For external vehicular bumpers see BUMPER, VEHICULAR. Excludes GROMMET (as modified); BUSHING, NONMETALLIC; PAD, CUSHIONING and WASHER (as modified).
Alternate Parts: 348007900, 348-0079-00, 348019100, 348-0191-00, 348007800, 348-0078-00, 5340-00-062-5431, 00-062-5431, 5340000625431, 000625431
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 17, 1967 | 00-062-5431 | 67806 ( BUMPER ) |
REFERENCE DRAWINGS & PICTURES

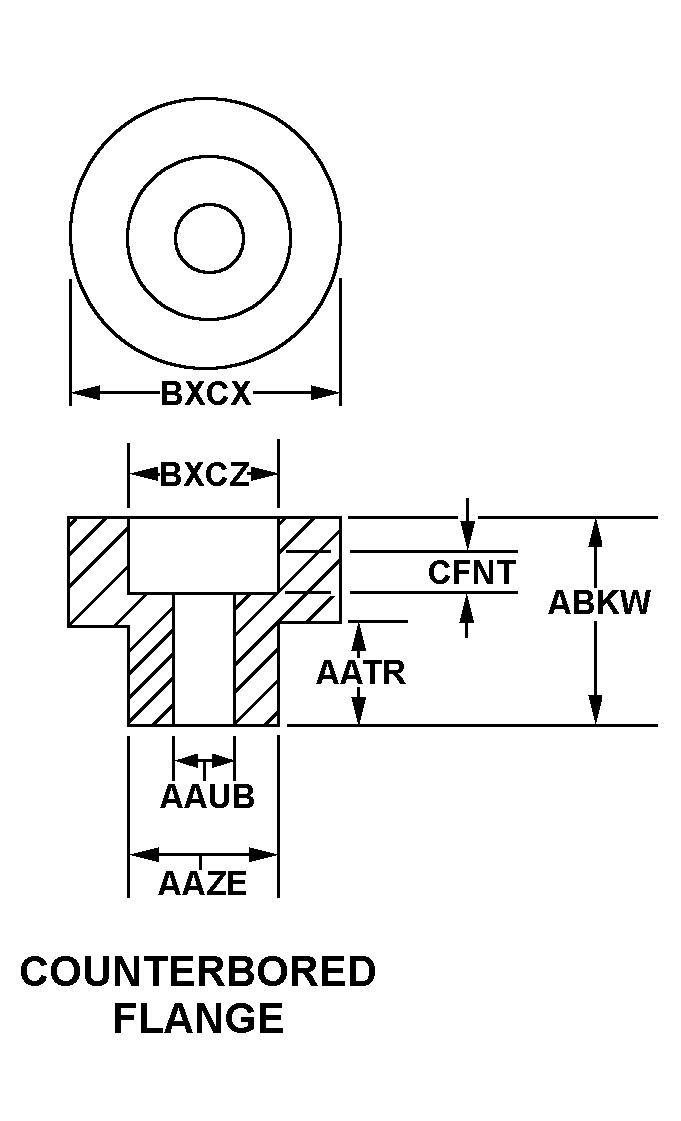

COUNTERBORED FLANGE
Cross Reference | NSN 5340-00-062-5431
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 348-0079-00 | 80009 | TEKTRONIX, INC.DBA TEKTRONIX |
| 348-0191-00 | 80009 | TEKTRONIX, INC.DBA TEKTRONIX |
| 348-0078-00 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5340-00-062-5431
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | TEKTRONIX INC, CAGE 80009; 254-0979-00 MFR REF SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | COUNTERBORED FLANGE |
| SHANK LENGTH | 0.279 INCHES NOMINAL |
| HOLE DIAMETER | 0.200 INCHES MINIMUM AND 0.206 INCHES MAXIMUM |
| SHANK DIAMETER | 0.301 INCHES MINIMUM AND 0.308 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.183 INCHES MINIMUM AND 1.197 INCHES MAXIMUM |
| OUTSIDE/TOP FLANGE DIAMETER | 0.765 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 0.325 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| FIRST COUNTERBORE DEPTH | 0.180 INCHES NOMINAL |
| COLOR | BLACK |
| SPECIAL FEATURES | OUTSIDE/TOP FLANGE RADIUS 0.094 IN. AND BOTTOM HAS UNDERCUT 0.125 IN. RADIUS |
