NSN 5325-00-637-5402
Part Details | METALLIC EYELET
5325-00-637-5402 A one-piece metal item, usually tubular, flanged at one end, the other end open. It is used primarily for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and crimped to form a mating flange. Excludes GROMMET, METALLIC and eyelets which are components of pushbutton, turnbutton and turnlock type fastners.
Alternate Parts: 648657, A591, 2053221, 20532218, 2053221-8, 2053221, 5325-00-637-5402, 00-637-5402, 5325006375402, 006375402
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-637-5402 | 05457 ( EYELET, METALLIC ) |
REFERENCE DRAWINGS & PICTURES

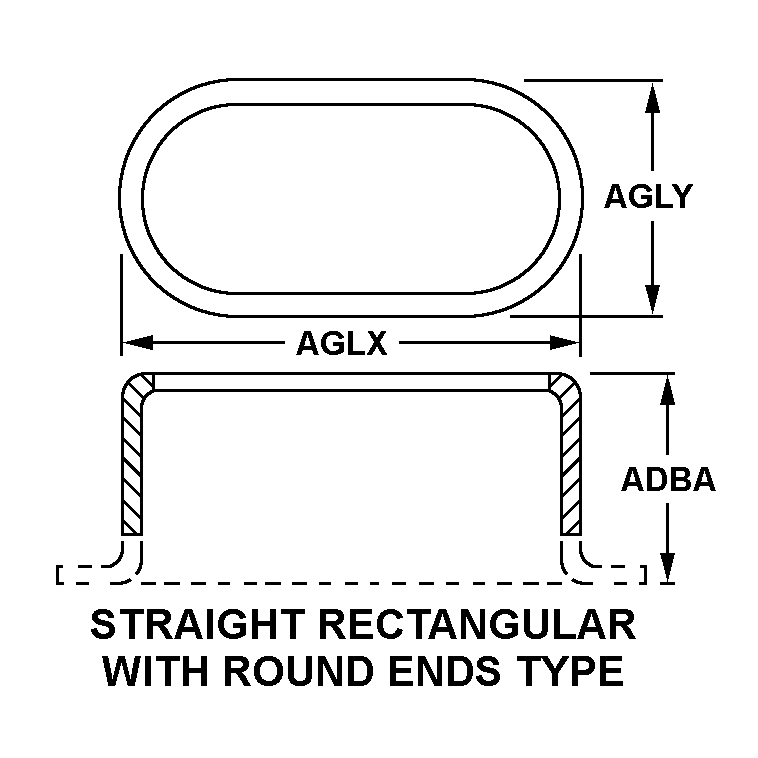

STRAIGHT RECTANGULAR WITH ROUND ENDS TYPE
FLANGE
Cross Reference | NSN 5325-00-637-5402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 648657 | 12436 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| A591 | 57771 | EDWIN B. STIMPSON COMPANY, INC. |
| 2053221 | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
| 2053221-8 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
| 2053221 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
Technical Data | NSN 5325-00-637-5402
| Characteristic | Specifications |
|---|---|
| BARREL STYLE | STRAIGHT RECTANGULAR WITH ROUND ENDS TYPE |
| BARREL HEIGHT | 0.266 INCHES NOMINAL |
| BARREL LENGTH | 0.780 INCHES NOMINAL |
| BARREL WIDTH | 0.370 INCHES NOMINAL |
| FLANGE STYLE | FLANGE |
| FLANGE LENGTH | 1.000 INCHES NOMINAL |
| FLANGE WIDTH | 0.562 INCHES NOMINAL |
