NSN 5325-00-624-0528
Part Details | LOCK PIN FASTENER STUD
5325-00-624-0528 A metallic postlike fastening device, having a body on one end which is usually round in cross section, and a hole drilled perpendicular to the axis for insertion of a lock pin to securely fasten inspection covers, plates, cowling, or the like. The opposite end has mounting facilities in the form of a flange, plain shank, or threaded shank. May include a grommet.
Alternate Parts: 7551074, 5325006240528, 7551074, 5325-00-624-0528, 00-624-0528, 5325006240528, 006240528
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 03, 1975 | 00-624-0528 | 18531 ( STUD, LOCK PIN FASTENER ) |

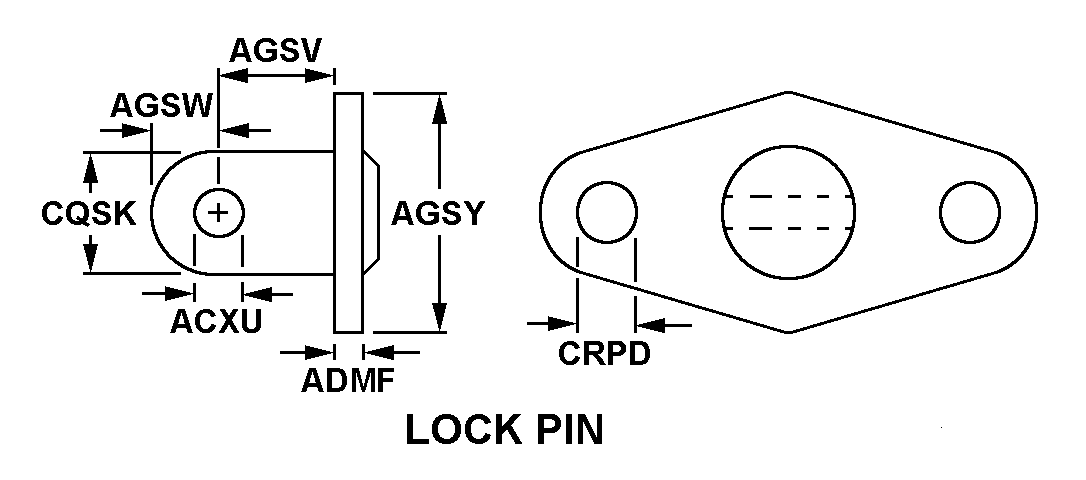

REFERENCE DRAWINGS & PICTURES
LOCK PIN
Cross Reference | NSN 5325-00-624-0528
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7551074 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 5325006240528 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 7551074 | T0720 | FNSS SAVUNMA SISTEMLERI A.S. |
Technical Data | NSN 5325-00-624-0528
| Characteristic | Specifications |
|---|---|
| FASTENER STYLE | LOCK PIN |
| PINHOLE DIAMETER | 0.300 INCHES NOMINAL |
| MOUNTING FLANGE THICKNESS | 0.310 INCHES NOMINAL |
| LENGTH FROM BODY SHOULDER TO HOLE CENTER | 3.250 INCHES NOMINAL |
| LENGTH FROM BODY HOLE CENTER TO BODY END | 0.630 INCHES NOMINAL |
| FLANGE OVERALL WIDTH | 1.500 INCHES NOMINAL |
| STUD BODY DIAMETER | 0.990 INCHES NOMINAL |
| SPECIAL FEATURES | 4910-00-433-7094 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN TOWBAR ASSEMBLY |
