NSN 5325-00-551-5900
Part Details | TURNBUTTON FASTENER CLINCH PLATE
5325-00-551-5900 A metal device designed to permanently fasten a SOCKET, TURNBUTTON FASTENER or STUD, TURNBUTTON FASTENER to a material by means of prongs, riveting, or spring binding action.
Alternate Parts: 582939, 5325-00-551-5900, 00-551-5900, 5325005515900, 005515900
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-551-5900 | 18138 ( CLINCH PLATE, TURNBUTTON FASTENER ) |
REFERENCE DRAWINGS & PICTURES

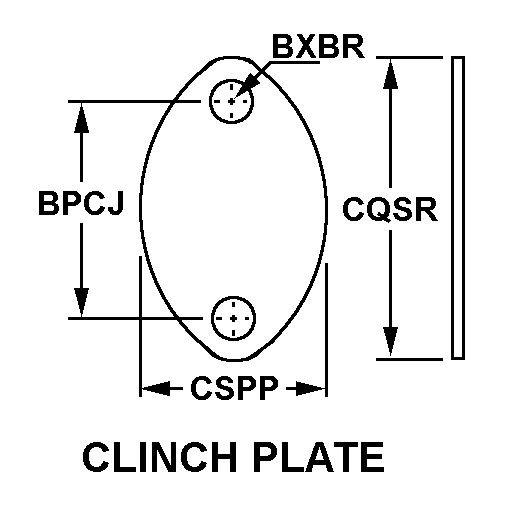

CLINCH PLATE
Cross Reference | NSN 5325-00-551-5900
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 582939 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5325-00-551-5900
| Characteristic | Specifications |
|---|---|
| TURNBUTTON CLINCH PLATE STYLE | CLINCH PLATE |
| DISTANCE BETWEEN HOLE CENTERS | 0.875 INCHES NOMINAL |
| HOLE INSIDE DIAMETER | 0.156 INCHES NOMINAL |
| PLATE HOLE LENGTH | 0.156 INCHES NOMINAL |
| PLATE OVERALL LENGTH | 1.250 INCHES NOMINAL |
| PLATE OVERALL WIDTH | 0.469 INCHES NOMINAL |
