NSN 5325-00-489-9643
Part Details | POSITIVE LOCK STUD
5325-00-489-9643 A quick disconnecting item with a circumferential groove at one end that is inserted into a RECEPTACLE, POSITIVE LOCK for positive fastening.
Alternate Parts: 2953843, 295384-3, 5325-00-489-9643, 00-489-9643, 5325004899643, 004899643
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-489-9643 | 18014 ( STUD, POSITIVE LOCK ) |
REFERENCE DRAWINGS & PICTURES

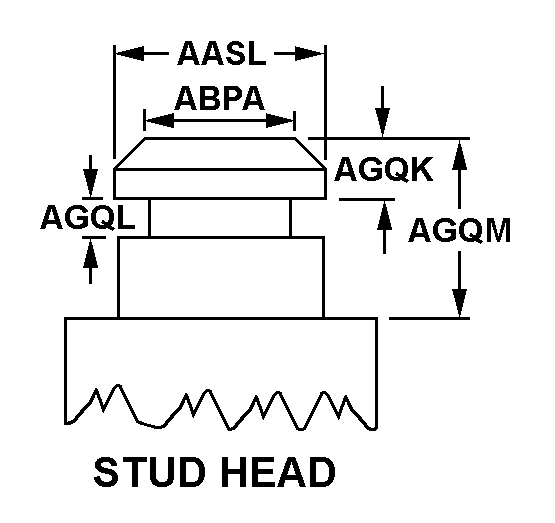

STUD HEAD

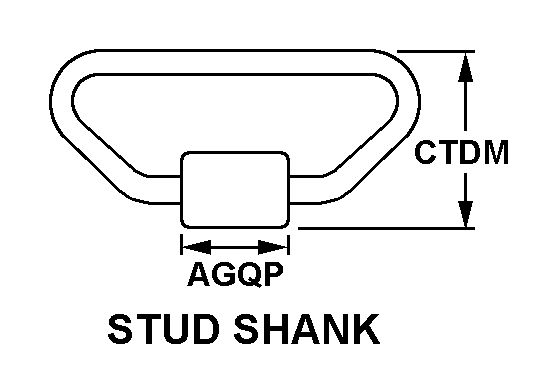

STUD SHANK
Cross Reference | NSN 5325-00-489-9643
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 295384-3 | 60119 | MONADNOCK COMPANY, THEDBA LISI AEROSPACE |
Technical Data | NSN 5325-00-489-9643
| Characteristic | Specifications |
|---|---|
| POSITIVE LOCK STUD HEAD STYLE | STUD HEAD |
| HEAD DIAMETER | 0.545 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.396 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.137 INCHES NOMINAL |
| UNDERCUT LENGTH | 0.080 INCHES NOMINAL |
| END OVERALL LENGTH | 0.349 INCHES NOMINAL |
| POSITIVE LOCK STUD SHANK STYLE | STUD SHANK |
| SHANK MAJOR DIAMETER | 1.000 INCHES NOMINAL |
| STUD SHANK OVERALL HEIGHT | 1.820 INCHES NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | NAVY SPECIAL PROJECT |
