NSN 5325-00-489-0870
Part Details | TURNLOCK FASTENER LOCK SPRING
5325-00-489-0870 A spring-tempered wire item used to secure a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cammed groove of the STUD, TURNLOCK FASTENER and securing it by means of its spring action.
Alternate Parts: S5275, S5-275, S5275, S5-275, 5325-00-489-0870, 00-489-0870, 5325004890870, 004890870
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-489-0870 | 18420 ( LOCK SPRING, TURNLOCK FASTENER ) |
REFERENCE DRAWINGS & PICTURES

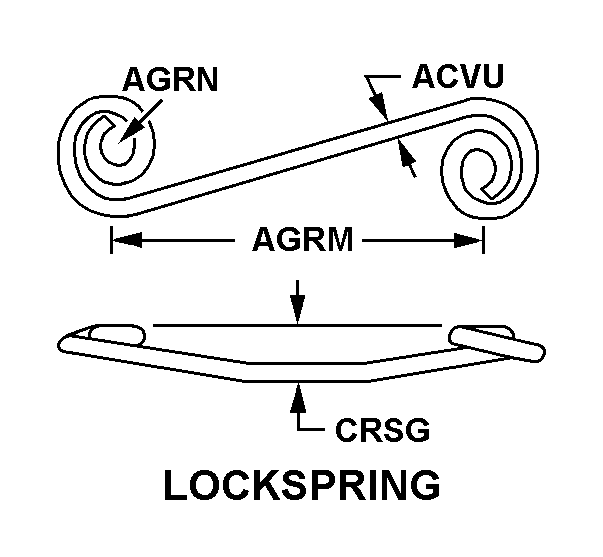

LOCKSPRING
Cross Reference | NSN 5325-00-489-0870
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S5-275 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACEFASTENERS DIVISION |
| S5-275 | U1584 | SOUTHCO UK LTD |
Technical Data | NSN 5325-00-489-0870
| Characteristic | Specifications |
|---|---|
| LOCKSPRING STYLE | LOCKSPRING |
| STOCK DIAMETER | 0.090 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN EYES | 1.000 INCHES NOMINAL |
| EYE DIAMETER | 0.125 INCHES NOMINAL |
| LOCKSPRING OVERALL HEIGHT | 0.275 INCHES NOMINAL |
