NSN 5325-00-482-1573
Part Details | RETAINING RING
5325-00-482-1573 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Alternate Parts: A11035, 9794100039, 9-794-100039, 9974100039, 99741000, 9-974-1000, 5325-00-482-1573, 00-482-1573, 5325004821573, 004821573
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 16, 1970 | 00-482-1573 | 07623 ( RING, RETAINING ) |

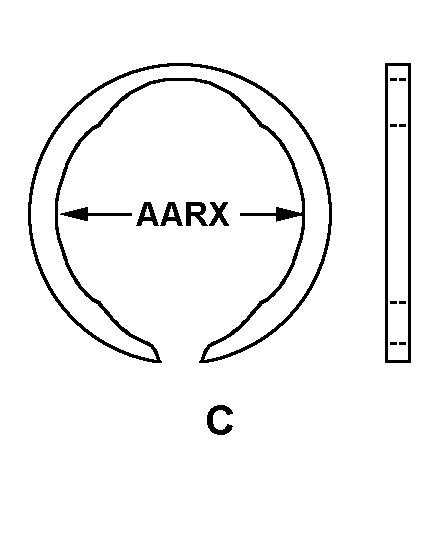

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
C
Cross Reference | NSN 5325-00-482-1573
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A11035 | 08302 | BRADEN CARCO GEARMATIC DIV OF PACCARINC |
| 9-794-100039 | 12361 | GROVE U.S. L.L.CDBA MANITOWOC CRANE GROUP |
| 9974100039 | 12361 | GROVE U.S. L.L.CDBA MANITOWOC CRANE GROUP |
| 9-974-1000 | 12361 | GROVE U.S. L.L.CDBA MANITOWOC CRANE GROUP |
Technical Data | NSN 5325-00-482-1573
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | C |
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| USAGE DESIGN | EXTERNAL |
| INSIDE DIAMETER | 4.532 INCHES NOMINAL |
| MAJOR THICKNESS | 0.109 INCHES NOMINAL |
