NSN 5325-00-466-0499
Part Details | METALLIC GROMMET
5325-00-466-0499 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Alternate Parts: MS20230WBPS10, MS2023WBPS10, 5325-00-466-0499, 00-466-0499, 5325004660499, 004660499
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 21, 1970 | 00-466-0499 | 06314 ( GROMMET, METALLIC ) |
REFERENCE DRAWINGS & PICTURES
SINGLE ROW TOOTHED

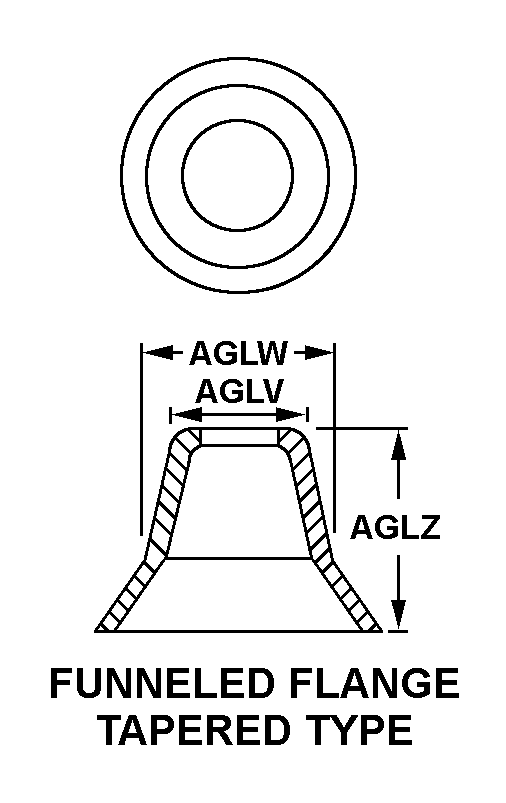

FUNNEL FLANGE TAPERED TYPE
FLANGE
Cross Reference | NSN 5325-00-466-0499
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20230WBPS10 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| MS2023WBPS10 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5325-00-466-0499
| Characteristic | Specifications |
|---|---|
| BARREL STYLE | FUNNEL FLANGE TAPERED TYPE |
| BARREL OUTSIDE DIAMETER | 0.270 INCHES NOMINAL |
| BARREL LARGEST OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| BARREL OVERALL HEIGHT | 0.235 INCHES NOMINAL |
| FLANGE STYLE | FLANGE |
| FLANGE OUTSIDE DIAMETER | 0.670 INCHES NOMINAL |
| FLANGE LENGTH | 0.235 INCHES NOMINAL |
| FLANGE WIDTH | 0.645 INCHES NOMINAL |
| WASHER STYLE | SINGLE ROW TOOTHED |
| SPECIFICATION/STANDARD DATA | 96906-MS20230(ASG) GOVERNMENT STANDARD |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | GROMMETS, METALLIC, PLAIN AND SPUR WITH WASHERS |
