NSN 5325-00-460-3150
Part Details | NONMETALLIC GROMMET BLANK
5325-00-460-3150 A small cylindrical, circular-like, nonmetallic item whose outer curved surface has a circumferential groove(s) to enable it to be self-retained when inserted in a hole.
Alternate Parts: 2590004603150, 10943171, 5325-00-460-3150, 00-460-3150, 5325004603150, 004603150
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 05, 1970 | 00-460-3150 | 20531 ( GROMMET BLANK, NONMETALLIC ) |

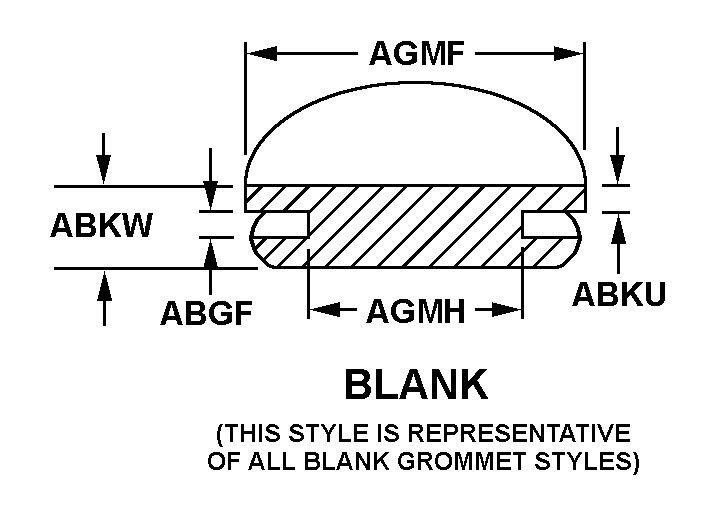

REFERENCE DRAWINGS & PICTURES
BLANK
Cross Reference | NSN 5325-00-460-3150
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2590004603150 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 10943171 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5325-00-460-3150
| Characteristic | Specifications |
|---|---|
| GROMMET STYLE | BLANK |
| GROOVE WIDTH | 0.250 INCHES NOMINAL |
| FLANGE THICKNESS | 0.188 INCHES NOMINAL |
| OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 1.375 INCHES NOMINAL |
| FEATURES PROVIDED | COOLANT RESISTANT AND OIL RESISTANT |
