NSN 5325-00-286-3119
Part Details | TURNLOCK FASTENER EJECTOR SPRING
5325-00-286-3119 A leaf-spring type item made of elastic material, designed to be fastened to a panel or RECEPTACLE, TURNLOCK FASTENER, and used to eject a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER when retracted from an inserted position.
Alternate Parts: 985ES, 98-5ES, 5325-00-286-3119, 00-286-3119, 5325002863119, 002863119
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-286-3119 | 18424 ( EJECTOR SPRING, TURNLOCK FASTENER ) |

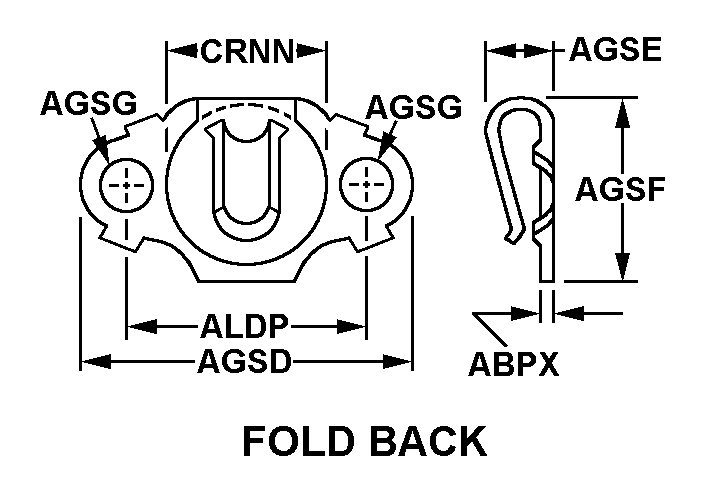

REFERENCE DRAWINGS & PICTURES
FOLD BACK
Cross Reference | NSN 5325-00-286-3119
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 98-5ES | 78189 | ITW SHAKEPROOF AUTOMOTIVE PRODUCTS |
Technical Data | NSN 5325-00-286-3119
| Characteristic | Specifications |
|---|---|
| EJECTOR SPRING STYLE | FOLD BACK |
| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
| SPRING OVERALL LENGTH | 1.375 INCHES NOMINAL |
| SPRING HEIGHT | 0.312 INCHES NOMINAL |
| SPRING WIDTH | 0.938 INCHES NOMINAL |
| SPRING MOUNTING HOLE DIAMETER | 0.266 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SPRING MOUNTING HOLES | 1.000 INCHES NOMINAL |
| EJECTOR SPRING HOLE DIAMETER | 0.500 INCHES NOMINAL |
