NSN 5325-00-276-7792
Part Details | SNAP FASTENER POST
5325-00-276-7792 A flanged metallic item, usually tubular, designed to permanently fasten a STUD, SNAP FASTENER to a material. May be open or closed at either end. Excludes EYELET, METALLIC.
Alternate Parts: AN22737B, AN227-37B, 22417, 5325-00-276-7792, 00-276-7792, 5325002767792, 002767792
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-276-7792 | 16558 ( POST, SNAP FASTENER ) |

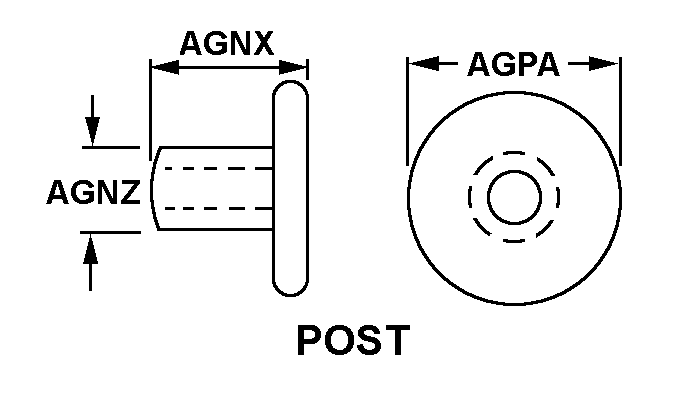

REFERENCE DRAWINGS & PICTURES
POST
Cross Reference | NSN 5325-00-276-7792
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-37B | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| 22417 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-276-7792
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER POST STYLE | POST |
| POST OVERALL LENGTH | 0.250 INCHES NOMINAL |
| POST SHANK DIAMETER | 0.125 INCHES NOMINAL |
| POST BASE DIAMETER | 0.438 INCHES NOMINAL |
