NSN 5325-00-276-6268
Part Details | SNAP FASTENER POST
5325-00-276-6268 A flanged metallic item, usually tubular, designed to permanently fasten a STUD, SNAP FASTENER to a material. May be open or closed at either end. Excludes EYELET, METALLIC.
Alternate Parts: AN22742, AN227-42, MS279855N, MS27985-5N, D331A, 5325-00-276-6268, 00-276-6268, 5325002766268, 002766268
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-276-6268 | 16558 ( POST, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

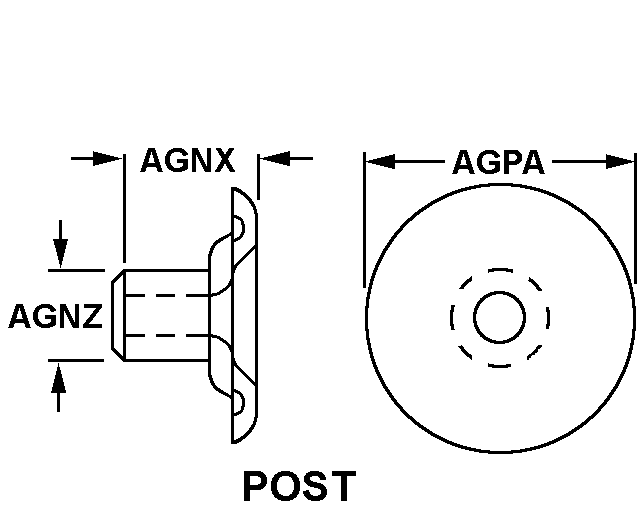

POST
Cross Reference | NSN 5325-00-276-6268
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-42 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| MS27985-5N | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| D331A | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-276-6268
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER POST STYLE | POST |
| POST OVERALL LENGTH | 0.266 INCHES NOMINAL |
| POST SHANK DIAMETER | 0.188 INCHES NOMINAL |
| POST BASE DIAMETER | 0.469 INCHES NOMINAL |
