NSN 5325-00-276-6266
Part Details | SNAP FASTENER CAP
5325-00-276-6266 An item designed to permanently fasten a SOCKET, SNAP FASTENER to a material. It may be either hemispherical in shape with prongs on the underside or have a hemispherical shaped head with a tubular shank. See also SOCKET, SNAP FASTENER.
Alternate Parts: AN22739, AN227-39, 197924, 1979-24, 5325-00-276-6266, 00-276-6266, 5325002766266, 002766266
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-276-6266 | 16556 ( CAP, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

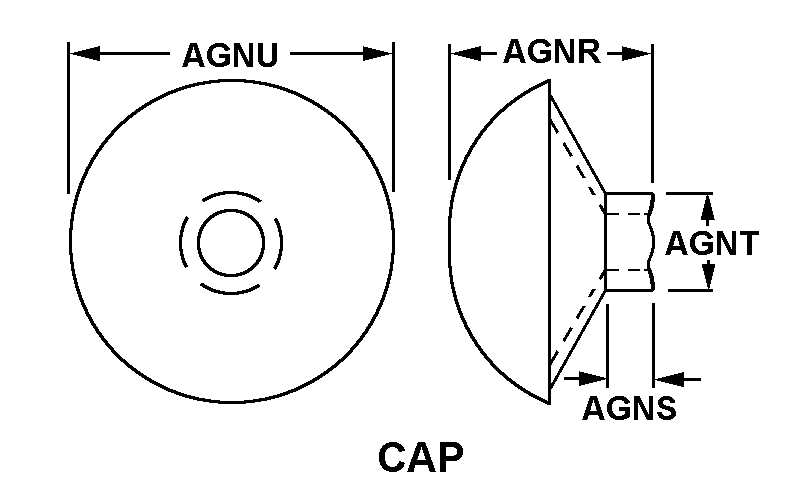

CAP
Cross Reference | NSN 5325-00-276-6266
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-39 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| 1979-24 | 53705 | SCOVILL INC |
Technical Data | NSN 5325-00-276-6266
| Characteristic | Specifications |
|---|---|
| CAP STYLE | CAP |
| CAP OVERALL LENGTH | 0.344 INCHES NOMINAL |
| CAP SHANK LENGTH | 0.062 INCHES NOMINAL |
| CAP SHANK DIAMETER | 0.156 INCHES NOMINAL |
| CAP HEAD DIAMETER | 0.609 INCHES NOMINAL |
