NSN 5325-00-276-5926
Part Details | NONMETALLIC GROMMET
5325-00-276-5926 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Alternate Parts: 2595, 5325-00-276-5926, 00-276-5926, 5325002765926, 002765926
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1960 | 00-276-5926 | 33729 ( GROMMET, NONMETALLIC ) |

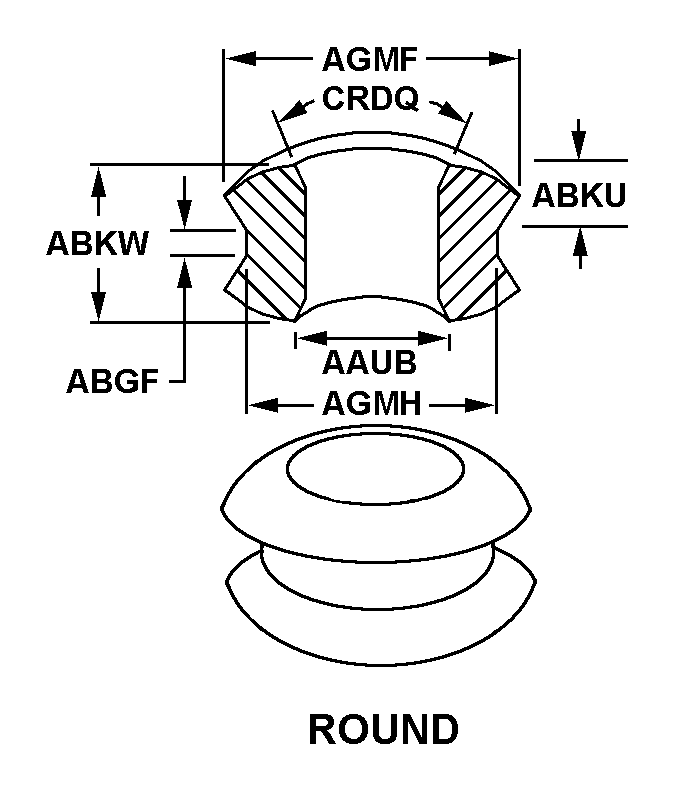

REFERENCE DRAWINGS & PICTURES
ROUND
Cross Reference | NSN 5325-00-276-5926
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2595 | 70485 | ATLANTIC INDIA RUBBER CO INC |
Technical Data | NSN 5325-00-276-5926
| Characteristic | Specifications |
|---|---|
| GROMMET STYLE | ROUND |
| HOLE DIAMETER | 0.875 INCHES NOMINAL |
| GROOVE WIDTH | 0.188 INCHES NOMINAL |
| FLANGE THICKNESS | 0.281 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 1.562 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SOLID |
