NSN 5325-00-276-5682
Part Details | SNAP FASTENER SOCKET
5325-00-276-5682 A component of a FASTENER, SNAP; which is designed as a receptacle for a STUD, SNAP FASTENER. It may be furnished with CAP, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER.
Alternate Parts: AN22740B, AN227-40B, MS279853B, MS27985-3B, NAF115420B, NAF1154-20B, 5325-00-276-5682, 00-276-5682, 5325002765682, 002765682
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-276-5682 | 16559 ( SOCKET, SNAP FASTENER ) |

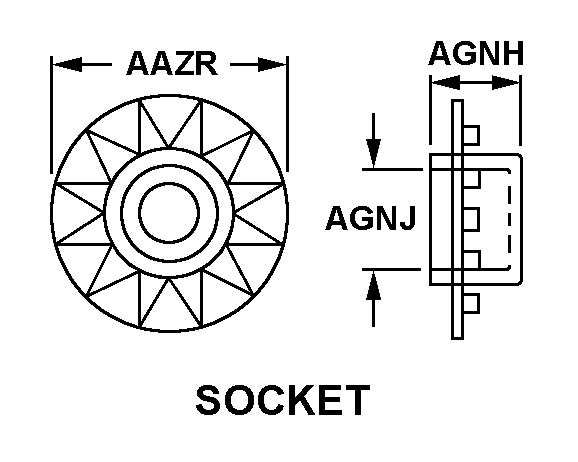

REFERENCE DRAWINGS & PICTURES
SOCKET
Cross Reference | NSN 5325-00-276-5682
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-40B | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| MS27985-3B | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| NAF1154-20B | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Technical Data | NSN 5325-00-276-5682
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER SOCKET STYLE | SOCKET |
| MAJOR DIAMETER | 0.484 INCHES NOMINAL |
| SOCKET OVERALL HEIGHT | 0.188 INCHES NOMINAL |
| OPENING DIAMETER | 0.203 INCHES NOMINAL |
| SPECIAL FEATURES | COLOR BLACK |
