NSN 5325-00-276-5680
Part Details | SNAP FASTENER SOCKET
5325-00-276-5680 A component of a FASTENER, SNAP; which is designed as a receptacle for a STUD, SNAP FASTENER. It may be furnished with CAP, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER.
Alternate Parts: AN22733, AN227-33, MS279843N, MS27984-3N, 5325-00-276-5680, 00-276-5680, 5325002765680, 002765680
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-276-5680 | 16559 ( SOCKET, SNAP FASTENER ) |

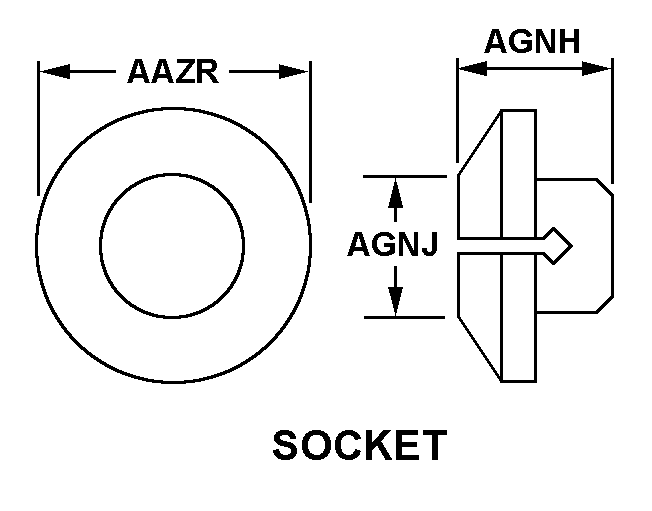

REFERENCE DRAWINGS & PICTURES
SOCKET
Cross Reference | NSN 5325-00-276-5680
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-33 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| MS27984-3N | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5325-00-276-5680
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER SOCKET STYLE | SOCKET |
| MAJOR DIAMETER | 0.375 INCHES NOMINAL |
| SOCKET OVERALL HEIGHT | 0.234 INCHES NOMINAL |
| OPENING DIAMETER | 0.156 INCHES NOMINAL |
