NSN 5325-00-276-5662
Part Details | SNAP FASTENER STUD
5325-00-276-5662 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Alternate Parts: 117233, 117233, 5325-00-276-5662, 00-276-5662, 5325002765662, 002765662
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-276-5662 | 16550 ( STUD, SNAP FASTENER ) |

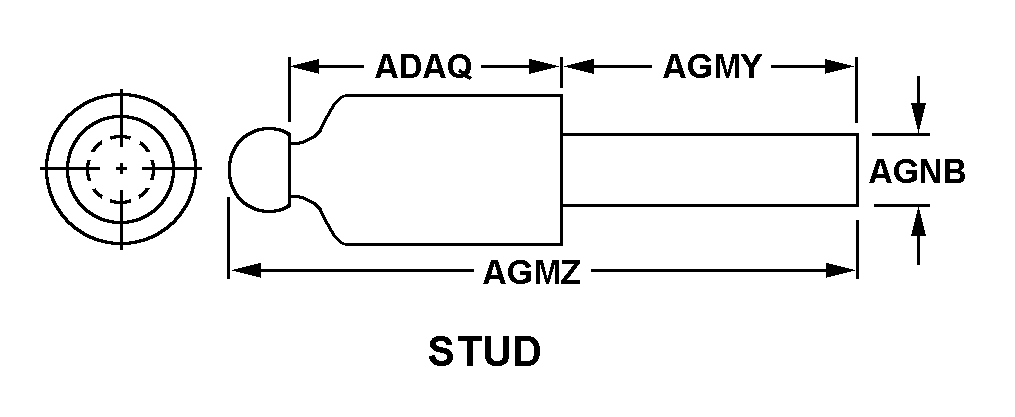

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 5325-00-276-5662
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 117233 | 24617 | GENERAL MOTORS CORP |
| 117233 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 5325-00-276-5662
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER STUD STYLE | STUD |
| BODY LENGTH | 0.422 INCHES NOMINAL |
| STUD SHANK LENGTH | 0.250 INCHES NOMINAL |
| STUD OVERALL LENGTH | 0.672 INCHES NOMINAL |
| STUD SHANK DIAMETER | 0.136 INCHES NOMINAL |
| STUD RETENTION METHOD | RIVET |
| SPECIAL FEATURES | COLOR BLACK |
