NSN 5325-00-276-4921
Part Details | SNAP FASTENER STUD
5325-00-276-4921 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Alternate Parts: AN22741B, AN227-41B, 130, 5325-00-276-4921, 00-276-4921, 5325002764921, 002764921
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-276-4921 | 16550 ( STUD, SNAP FASTENER ) |

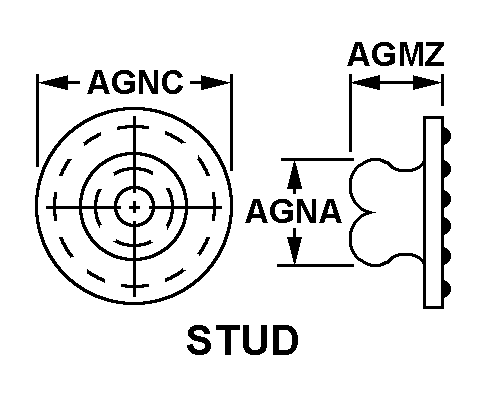

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 5325-00-276-4921
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-41B | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| 130 | 53705 | SCOVILL INC |
Technical Data | NSN 5325-00-276-4921
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER STUD STYLE | STUD |
| STUD OVERALL LENGTH | 0.156 INCHES NOMINAL |
| STUD HEAD DIAMETER | 0.188 INCHES NOMINAL |
| STUD BASE DIAMETER | 0.484 INCHES NOMINAL |
| STUD RETENTION METHOD | EYELET |
