NSN 5325-00-275-4509
Part Details | SNAP FASTENER POST
5325-00-275-4509 A flanged metallic item, usually tubular, designed to permanently fasten a STUD, SNAP FASTENER to a material. May be open or closed at either end. Excludes EYELET, METALLIC.
Alternate Parts: AN22752, AN227-52, 1280066009, 128-0066-009, MILF10884F, MIL-F-10884F, 31232552, 312325-52, 5325-00-275-4509, 00-275-4509, 5325002754509, 002754509
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-275-4509 | 16558 ( POST, SNAP FASTENER ) |

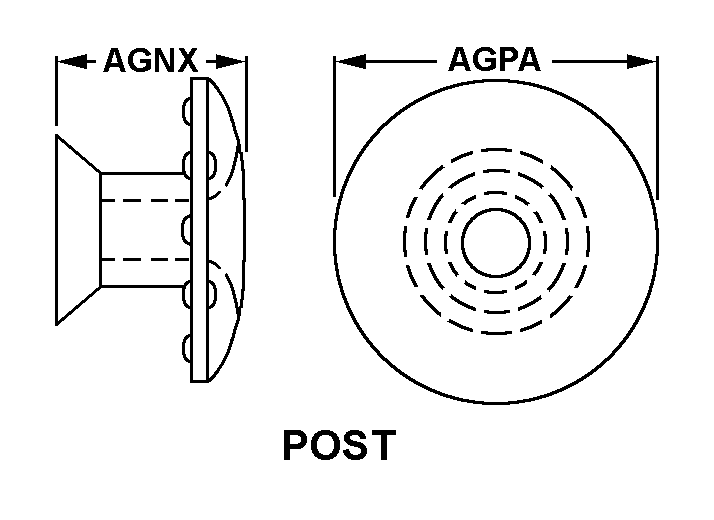

REFERENCE DRAWINGS & PICTURES
POST
Cross Reference | NSN 5325-00-275-4509
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-52 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| 128-0066-009 | 94756 | BOEING COMPANY, THEDBA BOEING |
| MIL-F-10884F | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 312325-52 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Technical Data | NSN 5325-00-275-4509
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER POST STYLE | POST |
| POST OVERALL LENGTH | 0.203 INCHES NOMINAL |
| POST BASE DIAMETER | 0.469 INCHES NOMINAL |
