NSN 5325-00-270-8911
Part Details | POSITIVE LOCK RECEPTACLE
5325-00-270-8911 A platelike item used to secure the STUD, POSITIVE LOCK by means of spring jaws which grip the circumferential groove of the stud. It may incorporate a quick release for the stud which may be actuated by a screwhead, thumbscrew or remote control.
Alternate Parts: AR55, AR5-5, 295300, AR55, AR5-5, 295300, 5325-00-270-8911, 00-270-8911, 5325002708911, 002708911
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-270-8911 | 18015 ( RECEPTACLE, POSITIVE LOCK ) |
REFERENCE DRAWINGS & PICTURES

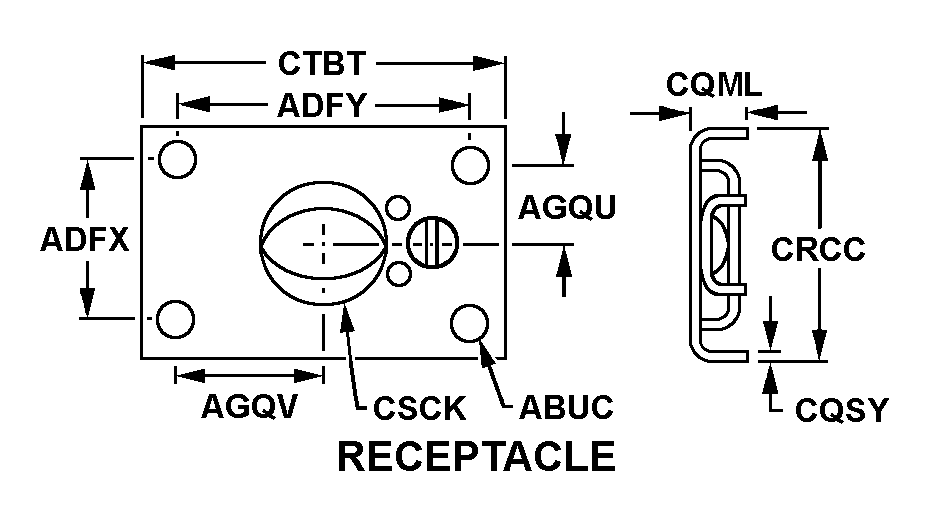

RECEPTACLE
Cross Reference | NSN 5325-00-270-8911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AR5-5 | 80477 | ADAMS RITE AEROSPACE, INC.DIV ADAMS RITE AEROSPACE |
| 295300 | 18355 | BOEING COMPANY, THEDBA BOEING |
| AR5-5 | 60119 | MONADNOCK COMPANY, THEDBA LISI AEROSPACE |
| 295300 | 60119 | MONADNOCK COMPANY, THEDBA LISI AEROSPACE |
Technical Data | NSN 5325-00-270-8911
| Characteristic | Specifications |
|---|---|
| POSITIVE LOCK RECEPTACLE STYLE | RECEPTACLE |
| MOUNTING HOLE DIAMETER | 0.191 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 2.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.875 INCHES NOMINAL |
| DISTANCE FROM STUD HOLE CENTER TO MOUNTING HOLE CENTER | 1.125 INCHES NOMINAL |
| DISTANCE FROM STUD HOLE CENTER TO MOUNTING HOLE CENTER ALONG LENGTH | 0.938 INCHES NOMINAL |
| POSITIVE LOCK RECEPTACLE HEIGHT | 0.420 INCHES NOMINAL |
| RECEPTACLE MATERIAL THICKNESS | 0.091 INCHES NOMINAL |
| POSITIVE LOCK RECEPTACLE WIDTH | 2.880 INCHES NOMINAL |
| RECEPTACLE HOLE DIAMETER | 0.562 INCHES NOMINAL |
| POSITIVE LOCK RECEPTACLE LENGTH | 3.310 INCHES NOMINAL |
| MOUNTING HOLE TYPE | COUNTERSUNK |
