NSN 5320-00-993-8704
Part Details | BLIND RIVET
5320-00-993-8704 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Alternate Parts: CR266366, CR2663-6-6, CR266366, CR2663-6-6, CR266366, CR2663-6-6, NAS1398C66, NAS1398C6-6, CR266366, CR2663-6-6, CR266366, CR2663-6-6, 5320-00-993-8704, 00-993-8704, 5320009938704, 009938704
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1962 | 00-993-8704 | 00864 ( RIVET, BLIND ) |

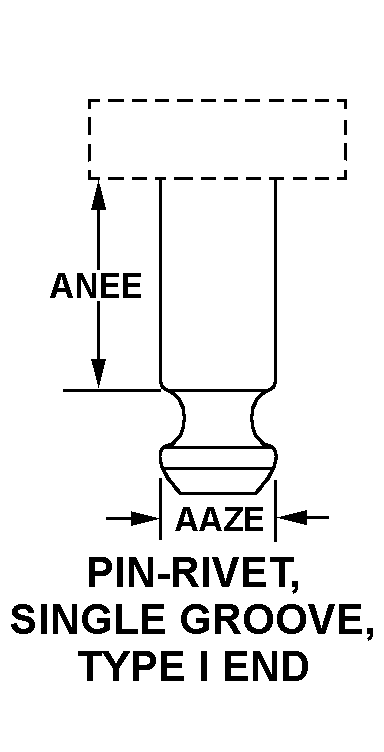

REFERENCE DRAWINGS & PICTURES
BRAZIER
PIN-RIVET, SINGLE GROOVE, TYPE I END
Cross Reference | NSN 5320-00-993-8704
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR2663-6-6 | C4293 | ALCOA FASTENING SYSTEMSFAIRCHILDFASTENERS EUROPE - VSD GMBH |
| CR2663-6-6 | 92215 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| CR2663-6-6 | 06950 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| NAS1398C6-6 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
| CR2663-6-6 | R1120 | SATAIR A/S |
| CR2663-6-6 | 11815 | SPS TECHNOLOGIES, LLCDBA CHERRY AEROSPACE DIV |
Technical Data | NSN 5320-00-993-8704
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | 8 BRAZIER |
| SHANK STYLE | PIN-RIVET, SINGLE GROOVE, TYPE I END |
| HEAD HEIGHT | 0.080 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.375 INCHES NOMINAL |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| SHANK DIAMETER | 0.188 INCHES NOMINAL |
| GRIP LENGTH | 0.375 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| LUBRICATION | DRY FILM |
