NSN 5320-00-992-5595
Part Details | TUBULAR RIVET
5320-00-992-5595 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Alternate Parts: AGS2050419, AGS2050-419, AGS2050419, AGS2050-419, 5320-00-992-5595, 00-992-5595, 5320009925595, 009925595
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1962 | 00-992-5595 | 00863 ( RIVET, TUBULAR ) |
REFERENCE DRAWINGS & PICTURES

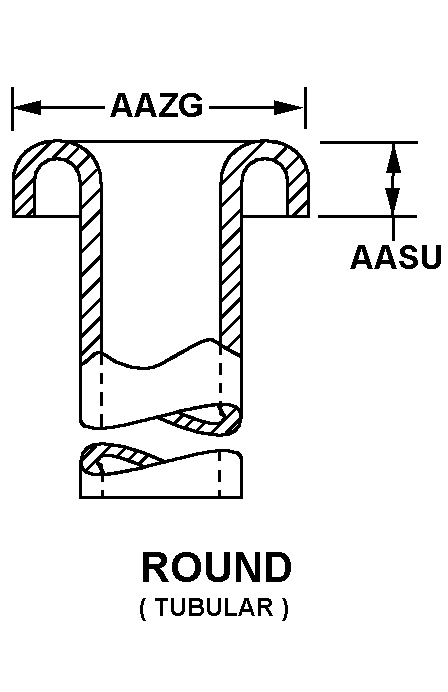

ROUND (TUBULAR)
STRAIGHT
Cross Reference | NSN 5320-00-992-5595
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AGS2050-419 | K7766 | BRITISH STANDARDS INSTITUTION |
| AGS2050-419 | U1604 | MARTIN BAKER AIRCRAFT CO LTDDBA MARTIN-BAKER |
Technical Data | NSN 5320-00-992-5595
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | ROUND (TUBULAR) |
| HEAD HEIGHT | 0.022 INCHES MINIMUM AND 0.028 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.229 INCHES MINIMUM AND 0.243 INCHES MAXIMUM |
| SHANK STYLE | STRAIGHT |
| FASTENER LENGTH | 0.185 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
